StrongHold Electrical Tape PVC Gen Purpose Red ST17-075-66RD (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

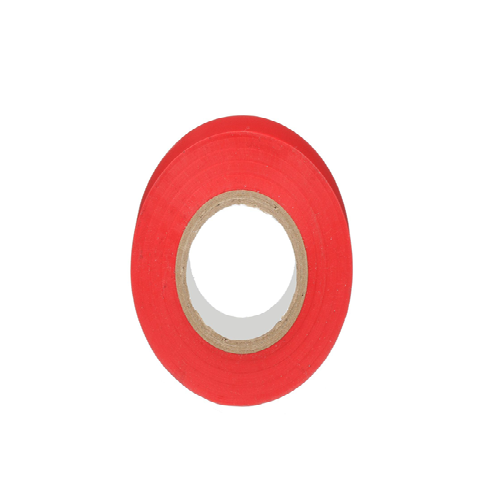

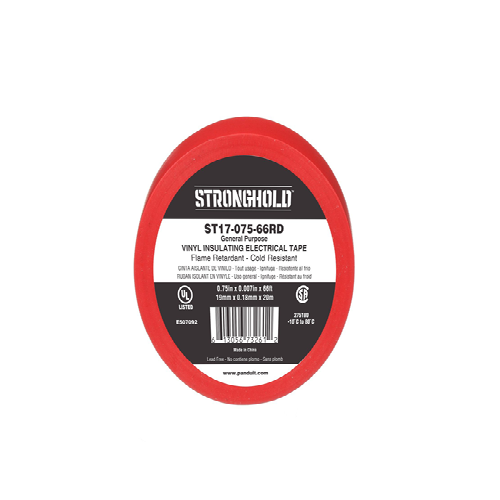

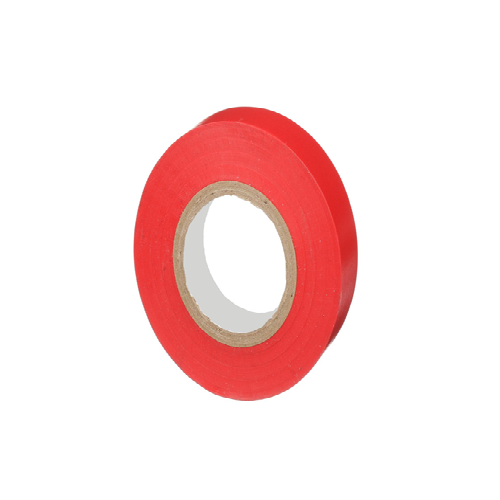

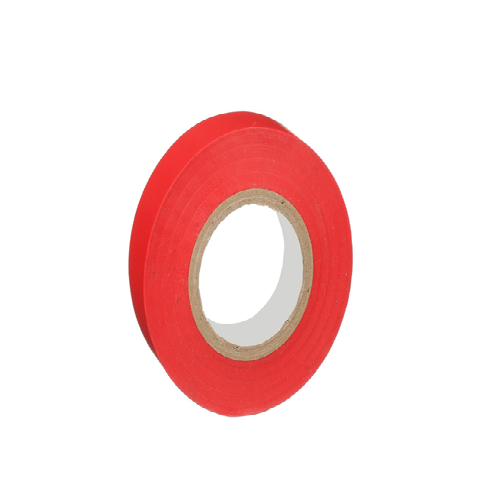

StrongHold ST17-075-66RD General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .007” in size. It is red in color and comes individually cellophane wrapped. Suitable as primary insulation when used for splicing up 600 Volts or 80∘C (176∘F).
Specification :
| Sub Brand | StrongHold |
| Product Type | Electrical Tape |
| Color | Red |
| Material | PVC |
| Adhesive Material | Rubber |
| Overall Thickness (In.) | 0.007 |
| Overall Thickness (mm) | 0.18 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.05 |
| Overall Length (ft.) | 66 |
| Overall Length (m) | 20.12 |
| Tensile Strength (N/cm) | 24.72 |
| Tensile Strength (kg/mm) | 0.252 |
| Elongation at Break (%) | 200 |
| Adhesion to Steel (N/cm) | 1.97 |
| Adhesion to Steel (oz/in) | 18 |
| Adhesion to Backing (N/cm) | 1.97 |
| Adhesion to Backing (oz/in) | 18 |
| Flammability Rating | UL 510 Flame Retardant |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Dielectric Breakdown Voltage (V) | 7 |
| Standards Met | Meets UL 510 CAS C 22.2 No 197; Meets RoHS 2002/95/EC directives |
| Compliance Certifications | CSA Certified, UL Listed |
| Environment | Indoor/Outdoor |
| Application | Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair |
| Durability (yr) | 5 |
| Tape Style | General Purpose |
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
