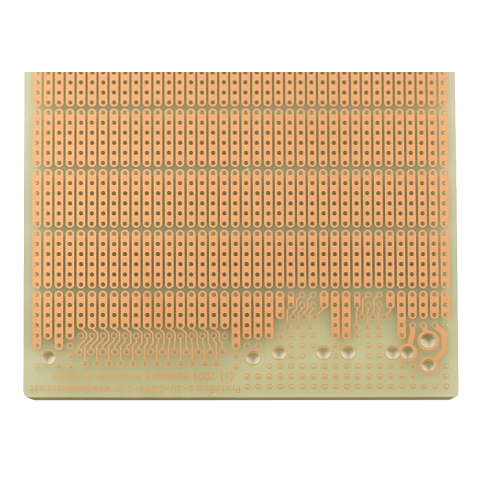

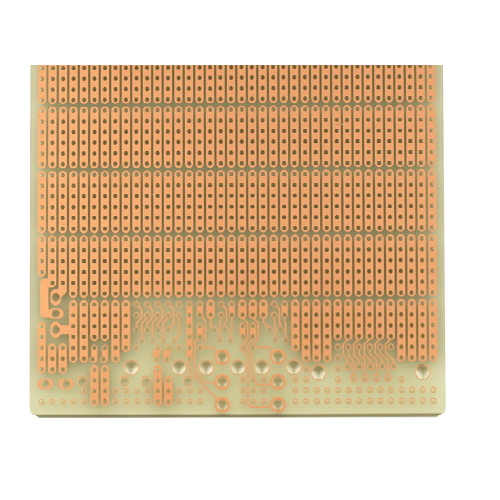

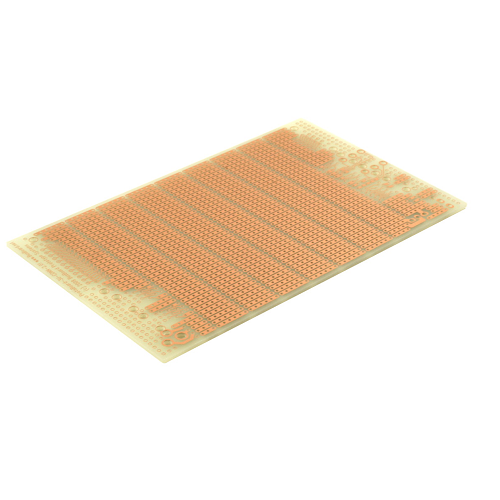

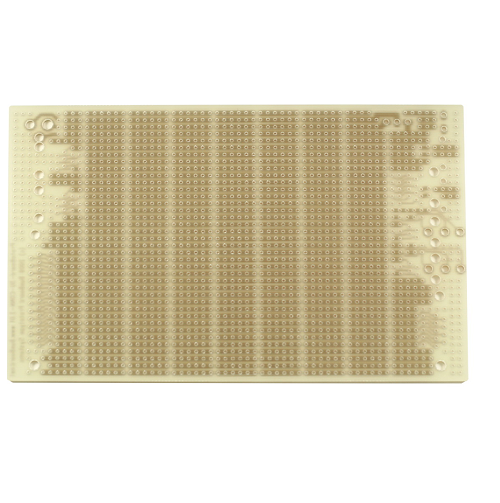

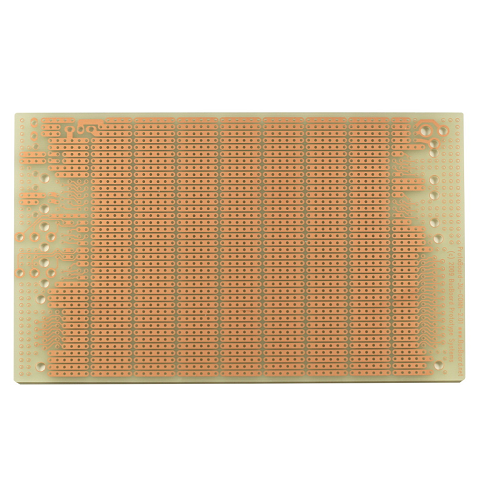

Standard Protoboard-3U-Connector, 6-Hole Strips, Connector Footprints PR3UC

Product Information

Specification

Also Known As :

Foot Connector, 6-hole ProtoBoard pattern, FR4 glass-epoxy circuit board, Copper anti-tarnish coating board

About :

ProtoBoards are widely used by electronics hobbyists, students, and engineers during the initial stages of circuit design and testing. They provide a convenient and flexible platform for trying out different circuit configurations before committing to a final design on a custom PCB. In woodworking, hole strips can refer to rows of evenly spaced holes drilled into a piece of wood or other material. These hole strips are often used for tasks like doweling, where wooden dowels or pegs are inserted into the holes to create strong joints in furniture and cabinetry.

Common Applications: :

1. Electronics Prototyping: In electronics, "hole strips" can refer to rows or columns of holes on a prototyping board (such as a breadboard or perfboard) that are used for inserting and connecting electronic components and wires. These hole strips are designed to facilitate the construction and testing of electronic circuits without the need for soldering.

Standards:

ProtoBoards typically consist of a grid of holes or pads arranged in rows and columns. These holes are used for inserting and connecting electronic components and wires.



Construction :

Attachment Points: Mounting holes provide secure attachment points for fasteners like screws, bolts, nuts, washers, or rivets.
Alignment: Mounting holes are often used for aligning and positioning objects or components accurately.
Strength and Stability: Mounting holes can enhance the strength and stability of structures or assemblies.
Modularity: In modular design and construction, mounting holes allow components or modules to be easily attached or detached, facilitating the assembly, maintenance, or replacement of parts.
Heat Dissipation: In electronic and mechanical systems, mounting holes can be strategically placed to help dissipate heat. Heat sinks or other cooling components can be attached through these holes to maintain optimal operating temperatures.

Part Number	PR3UC
Size	3.9" wide, 6.3" long
Holes	0.1" (2.54mm) centers.
Thick	1/16" thick (100 x 160 x 1.6mm).

Features :

• Footprint provided for commonly used connectors
• Convenient 6-hole ProtoBoard pattern provides an easy way to connect parts to IC’s.
• Single-sided high-quality FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• Standard single height (3U) Eurocard/VME size: 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm). ProtoBoard-3U-CONN speeds assembly by providing footprints for common connectors plus a switch. - DB-9- DB-25 - SPDT switch - RJ11 modular phone jack (2) - 1/8" sub-mini (2) or mod. handset jack (2) - coaxial power connector - RJ45 Ethernet Jack (1) or BNC (2)
• ProtoBoard saves time! ProtoBoard has a general purpose stripboard circuit pattern
that is pre-cut with 6 holes per strip.
• Standard single height (3U) Eurocard/VME size. Many off the shelf enclosures and card
cages are available.
• Includes a RJ45 jack for 10baseT ethernet (8 position modular).

Specifications:

• Etched FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• Holes are drilled on 0.1" (2.54mm) centers.
• 0.037" (0.94mm) holes sized for ICs or square post headers.
• Size 3U = 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm)
