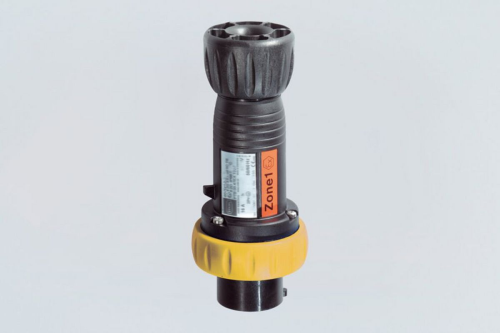

STAHL PLUG, SERIES 8570/12, 16A, ATEX, IP66, 3 PIN, 100-130VAC, 50/60HZ - 8570/12-304
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Frequency range | 50 – 60 Hz |
| Ambient temperature min. | -30°C |
| Ambient temperature max. | +55 °C |
| Enclosure material | Polyamide, Glass fibre reinforced |
| Type of connection cable | Finely stranded Solid |
| Colour code | Yellow |
| Coding (clock hour position) | 4 |
| Series | SolConeX |
| Detailed number of poles | 3 P (1 P + N + PE) |
| Rated operational voltage AC | 100 – 130 V |
| Rated operational current | 16 A |
| Type of voltage | Low voltage |
| Part Number | 8570/12-304 |
Description :-
R. STAHL Series 8570/ 12 SolConeX plugs for Zone 1/ 21 are 3- , 4- or 5- pole 16 A plugs. The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self- cleaning and corrosion- free plug pins made from high- quality materials ensure optimum electrical contact.
Key Features :-
- • Degree of protection IP66, suitable for Zones 1, 2, 21 and 22 worldwide, extreme temperature range of –50 … +55 °C
- • No impact of torsional forces from the cable on the seal
- • Full compatibility between SolConeX and CES devices
