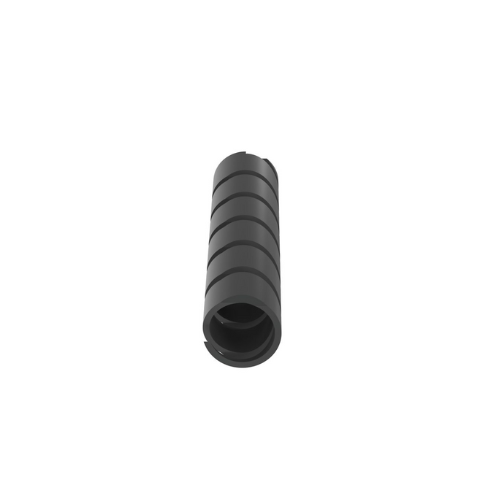

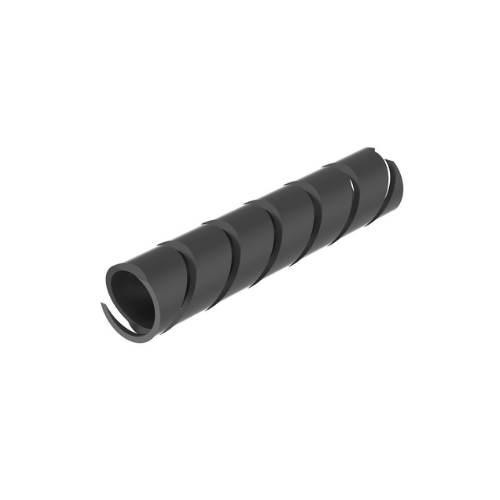

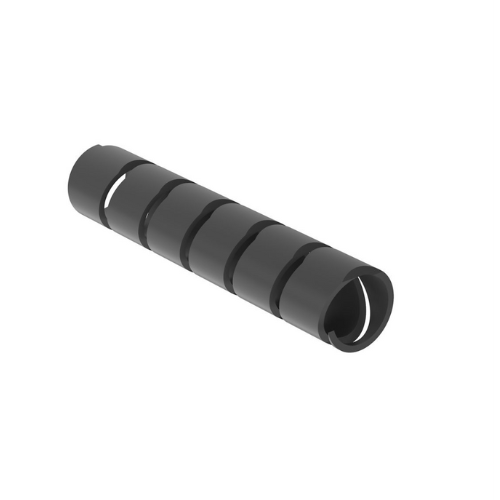

Spiral Roll Wrap Indoor and Outdoor Black T50N-TL0
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

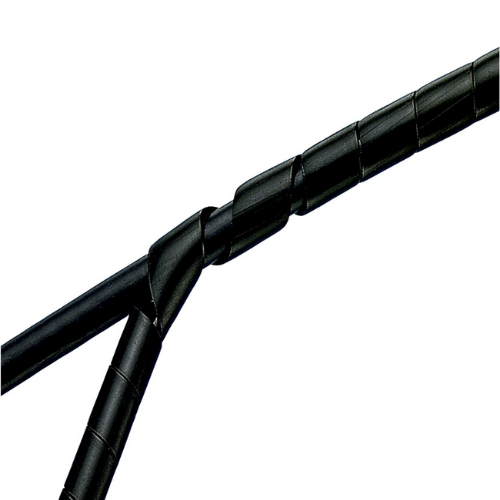

The T50N-TL0 Weather Resistant Nylon 6.6 Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 149°F (65°C). 0.50" (12.7 mm) diameter x 250' (76.2 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Black.
Specification :
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94-HB |
| Material | Nylon 6.6 |
| Resistance Properties | Abrasion-Resistant, Weather-Resistant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Bundle Diameter (In.) | 0.375 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.5 |
| Outer Diameter (mm) | 12.7 |
| Overall Length (ft.) | 250 |
| Overall Length (m) | 76.2 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.032 |
| Wall Thickness (mm) | 0.81 |
Application :
Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
