SPARC Fusion Splicer Ribbon Fiber SPRI-1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | SPARC Fusion Splicer |
| UPC | 810132438004 |
| Alignment Method | Core Alignment |
| Number of Fibers | Up to 12 |
| Coating Diameter | 100µm - 3mm |
| Cladding Diameter | 125µm |
| Cleave Length | 10 - 13mm |
| Return Loss | >>60 dB |
| Splice Programs | Max 100 modes |
| Electrode Life Span | 1500 Arc Discharges |
| Heating Programs | Max 32 modes |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Battery Capacity | 9000mAh Battery Capacity / Typical 330 cycles (Splicing + Heating) |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.8" x 6.5" x 6.5" |
| Part Number | SPRI-1 |

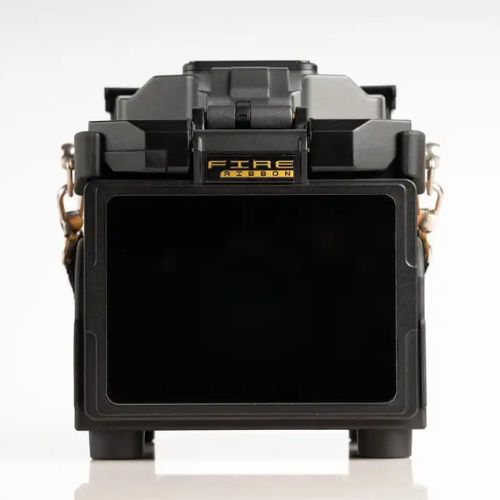

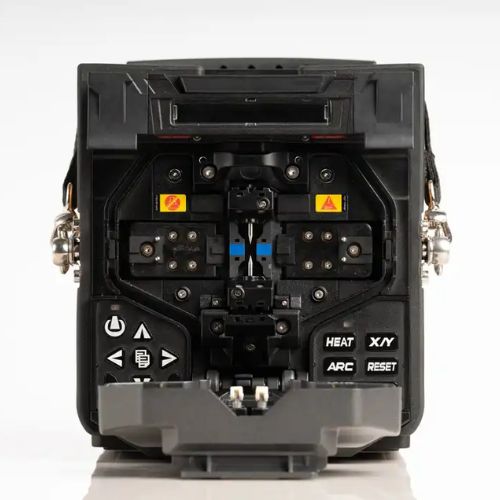

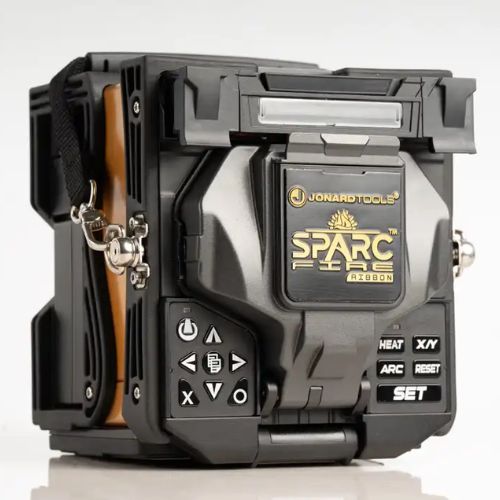

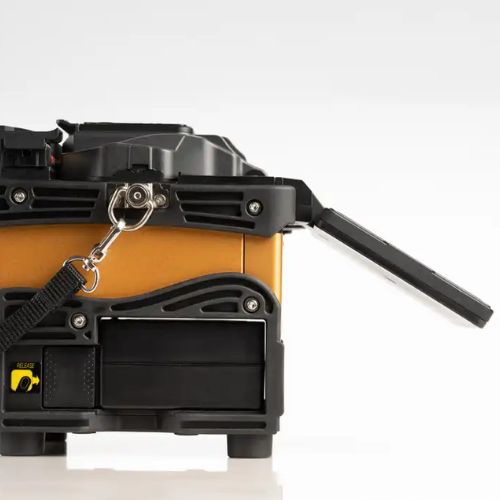

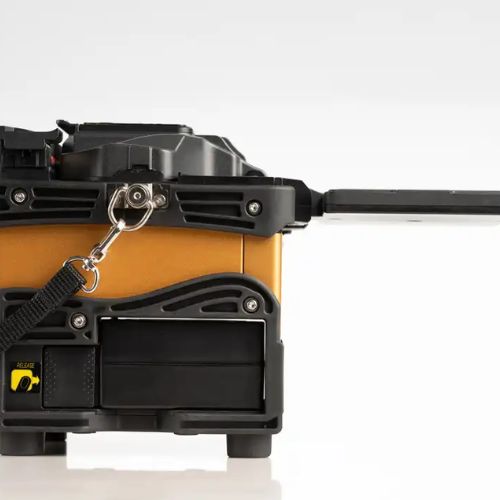

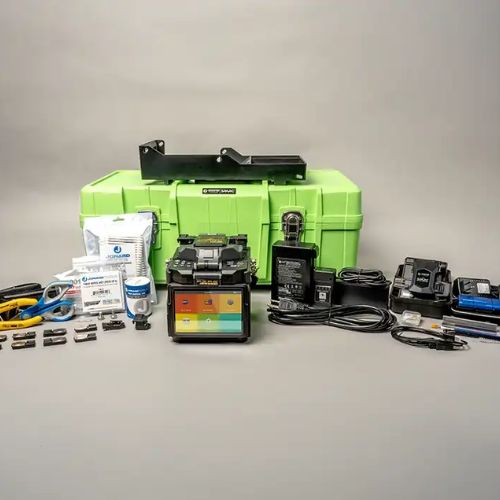

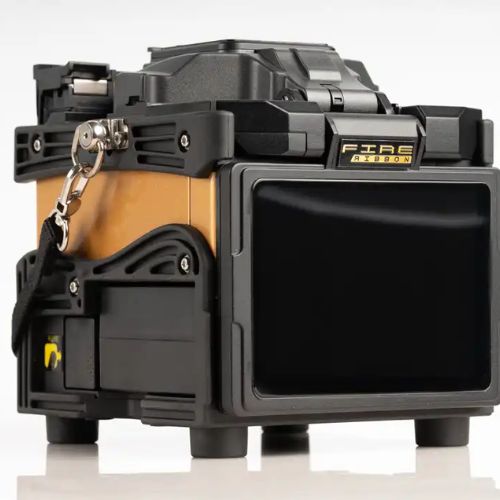

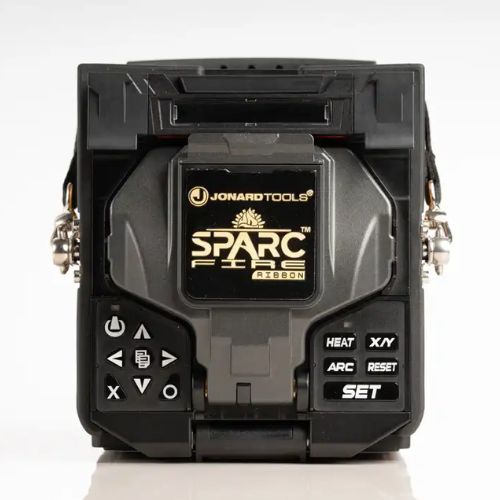

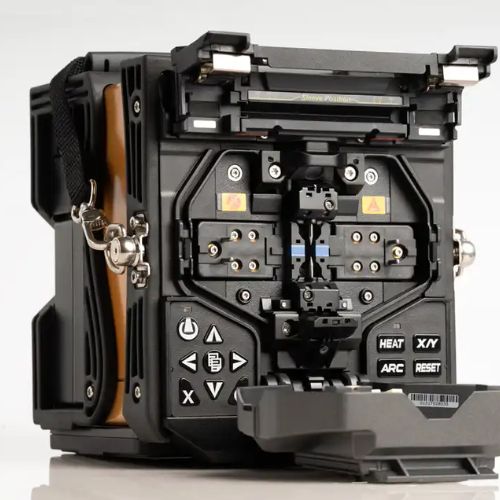

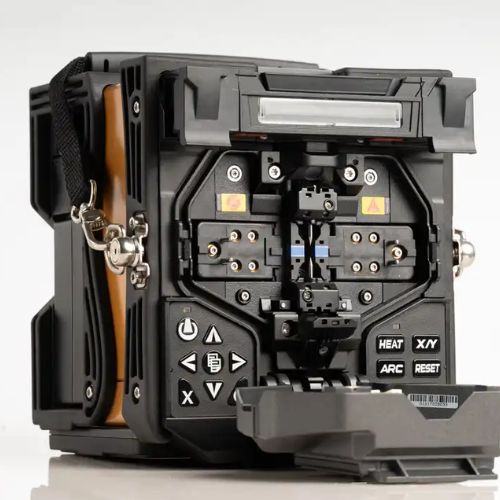

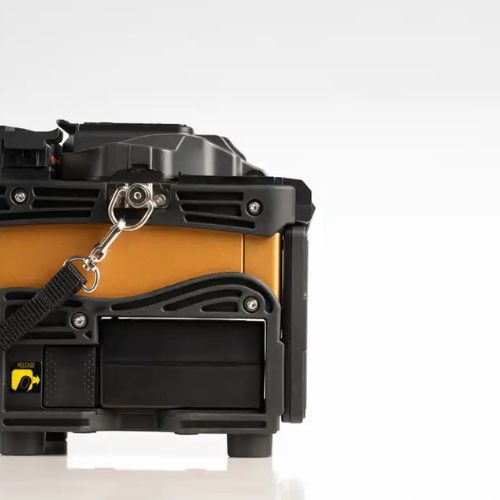

SPARC Fusion Splicer Ribbon Fiber
Description:
The SPARC Core Alignment Fusion Splicer is an advanced ribbon fiber fusion splicer, delivering exceptional precision, reliability, and efficiency in fiber splicing applications.
Features:
⦿ Fast fiber splicing: 15 seconds for ribbon fiber, 9 seconds for single fiber
⦿ Pressure heater technology with a 20-second heating cycle
⦿ Versatile fiber holders for multiple ribbon fiber sizes
⦿ Enhanced illumination for improved visibility in low-light environments

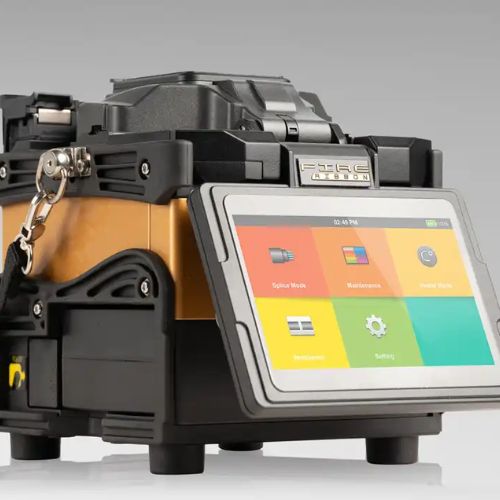

⦿ Intuitive full-touchscreen user interface
⦿ High-capacity 9000mAh battery supports up to 220 splice and heat cycles per charge
⦿ Rugged, field-ready construction:
⦿ Water resistance: IPX2
⦿ Dust resistance: IP5X
⦿ Shock resistance: 30-inch drop tested
⦿ On-board memory stores up to 5,000 test records
⦿ Independently tested; ETL Listed compliant
Download PDF Spec Sheet
