SPARC Fusion Splicer Clad Alignment SPCL-1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | SPARC Fusion Splicer |
| UPC | 810132437861 |
| Alignment Method | Active V-Groove Clad Alignment |
| Number of Fibers | Single |
| Coating Diameter | 100µm - 3mm |
| Cladding Diameter | 80 - 150µm |
| Cleave Length | 5 - 16mm |
| Return Loss | >>60 dB |
| Splice Programs | Max 128 modes |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Battery Capacity | 7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.5" x 6.2" x 6" |
| Part Number | SPCL-1 |

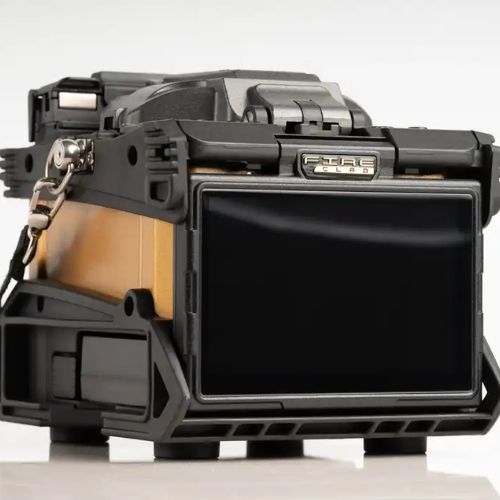

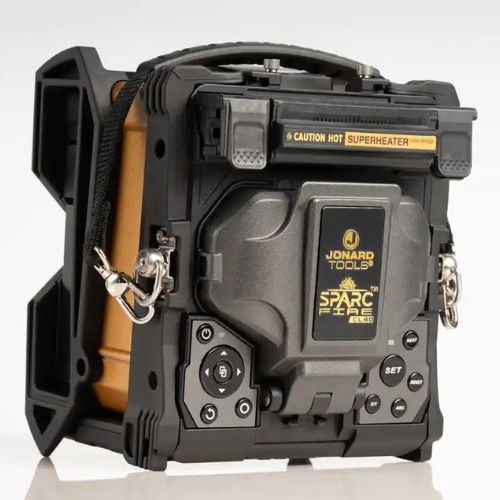

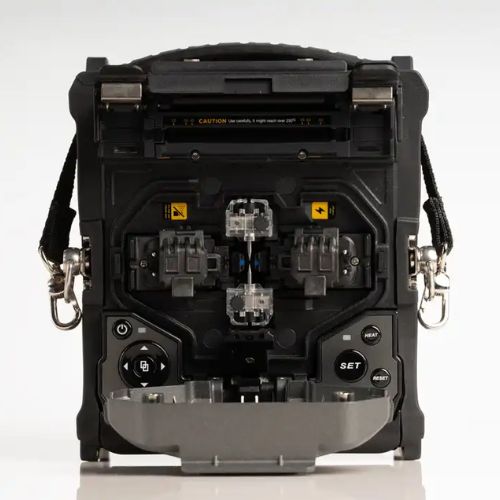

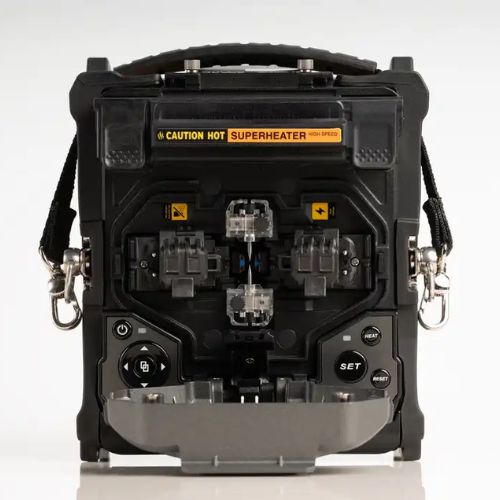

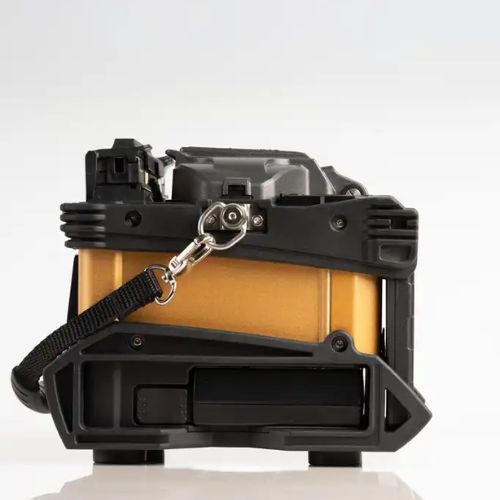

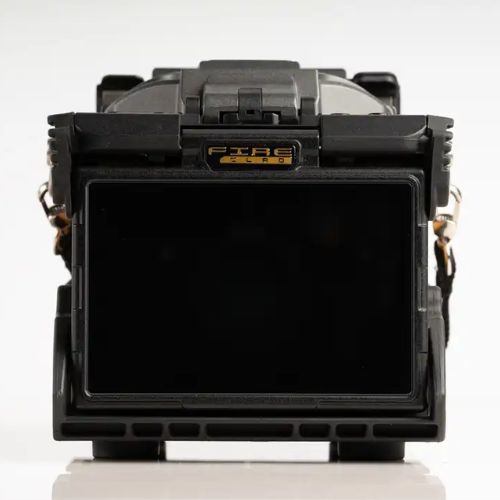

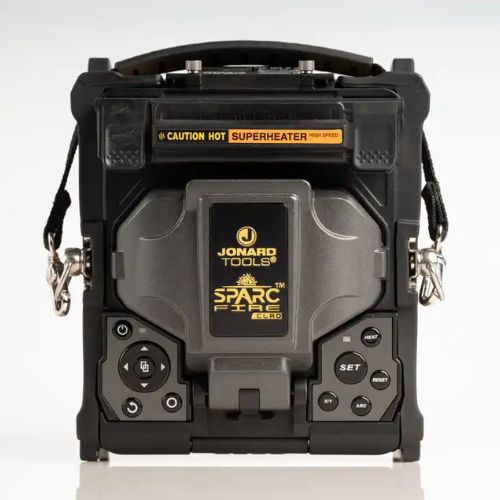

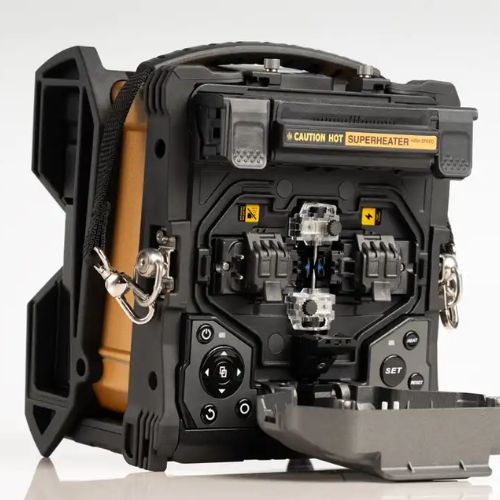

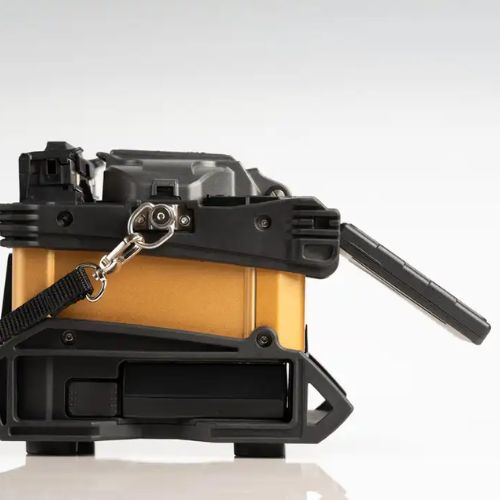

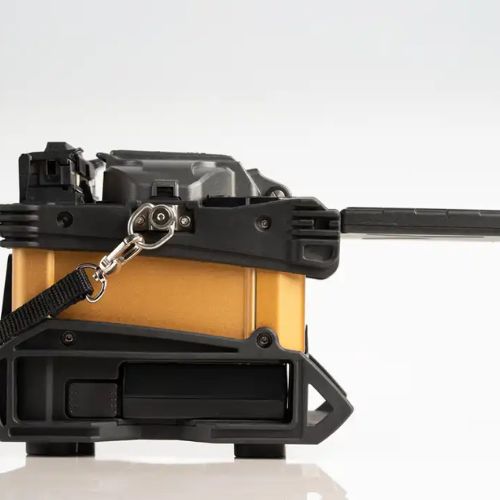

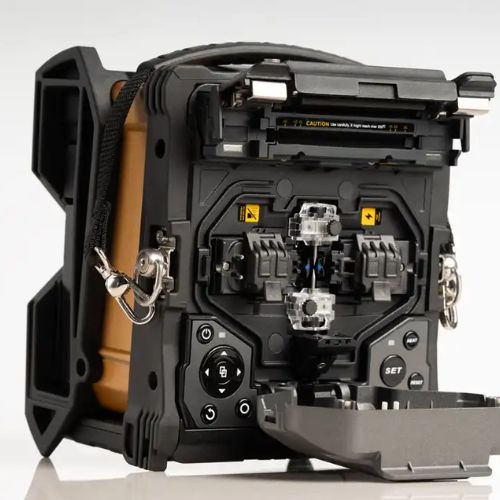

SPARC Fusion Splicer Clad Alignment
Description:
The SPARC Clad Alignment Fusion Splicer is an advanced active V-groove cladding alignment fusion splicer, delivering exceptional precision, reliability, and efficiency in fiber splicing.
Features:
⦿ Ultra-fast fiber splicing in as little as 4 seconds
⦿ Pressure heater technology with 9-second heat-shrink time
⦿ Versatile fiber holder for standard and loose-tube fibers
⦿ Enhanced LED lighting for improved visibility in low-light environments

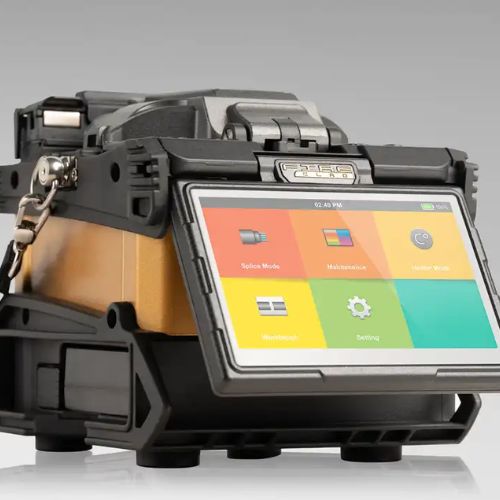

⦿ Intuitive full-touchscreen interface
⦿ High-capacity 7000mAh battery supports 400+ splice & heat cycles per charge
⦿ Rugged, field-ready design:
⦿ Water resistance: IPX2
⦿ Dust resistance: IP5X
⦿ Shock resistance: 30-inch drop tested
⦿ On-board memory stores up to 20,000 splice records or 10,000 images
⦿ Independently tested and ETL Listed compliant
Download PDF Spec Sheet
