Product Information
Specification
| Product Type | IllumaTech Slide |
| Frequency | 60 Hz |
| Light | LED Locator Light |
| Load Rating | 1200VA |
| Load Type | Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply |
| Protection | Radio/TV Filter |
| Switch Type | Single-Pole & 3-Way |
| Voltage | 120/277 VAC |
| Wallplate | Order Separately |
| Part No | IP710-DLZ |

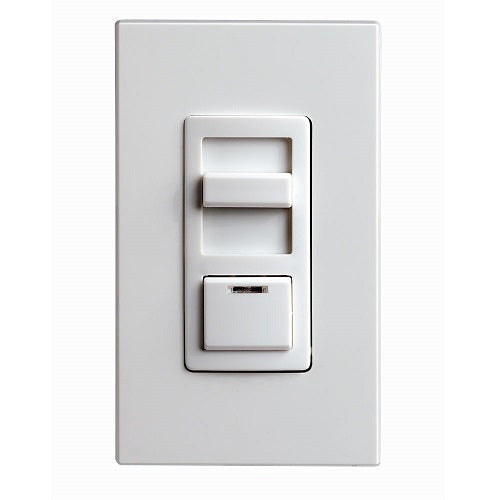

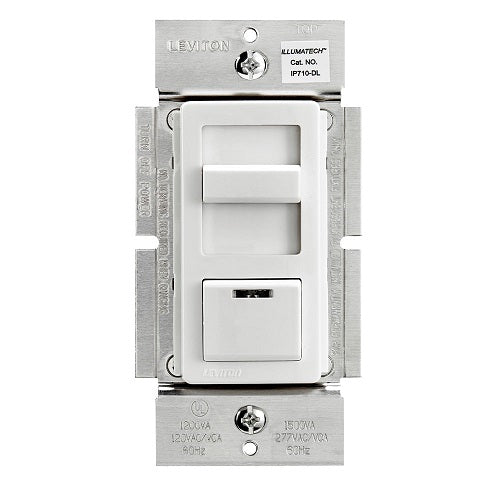

Slide Dimmer for LED IllumaTech 10A LED Power Supplies IP710-DLZ
DESCRIPTION :
IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light, suitable for use with Class 1 or Class 2 wiring, 1200VA. 120VAC, 1500VA, 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond.
FEATURES :
⦿ Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7 0-10V fluorescent ballasts
⦿ Dual voltage 120V/277V; 50mAmps maximum sink current
⦿ No power pack required for switching
⦿ Provides single pole or 3-way lighting control when used with a 3-way switch
⦿ Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)

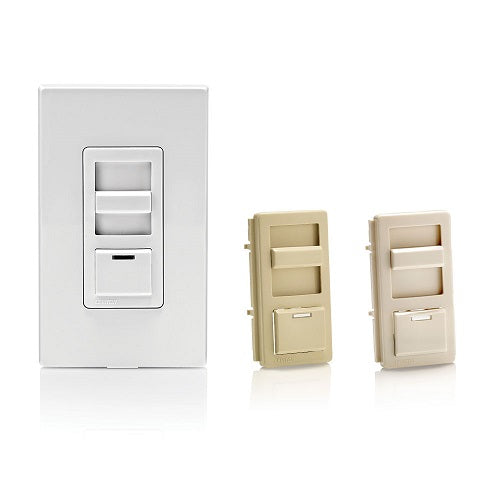

⦿ Six product options in each box with three changeable faceplates and single pole or 3-way functionality when used with a 3-way switch
⦿ Fluid slide movement allows fine adjustment of light level with minimal effort
⦿ Captive wraparound slide bar remains securely attached
Download PDF Spec Sheet
