SKINTOP BS PG 9BK(Black) - 53015810 (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Material | Polyamide |
| Classification ETIM 5 | Cable screw gland |
| Colour delivered | Black (RAL 9005), UV-resistant |
| Temperature range | -20°C to +100°C |

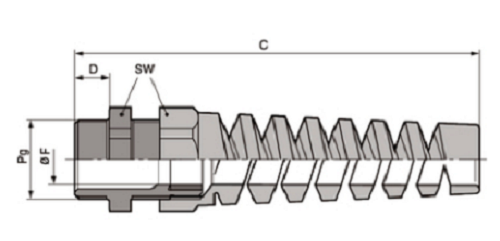

| Article designation / size | PG 9 |
| Ø F mm | 3.5 - 8 |
| SW wrench size mm | 19 |
| Overall length C mm | 75.0 |
| Thread length D mm | 8 |
| Pieces / PU | 100 |
| Part Number | 53015810 |
Description:

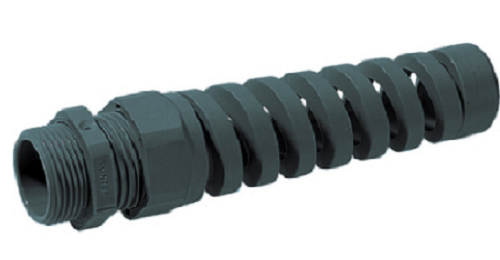

SKINTOP® BS, polyamide cable gland with bending and anti-kink protection, to protect flexible cables, for moving machine parts
Key Features:
- Good chemical resistance
- Wide clamping range
- Mechanical resistance
- Optimum strain relief
- Temperature-resistant
- Variety of approval certifications
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
