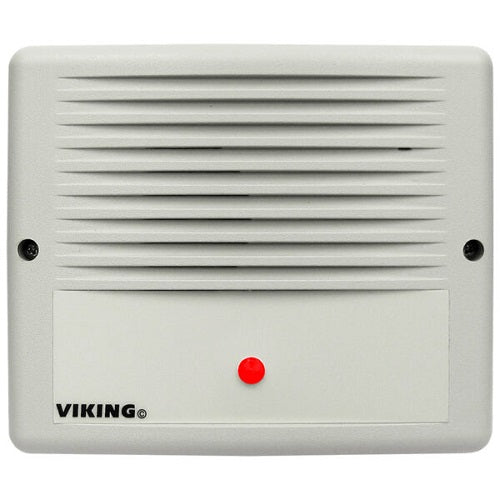

Viking SR-IP – SIP Audible Ringer with Visual Ring Indication and Remote Strobe Light Control
About :
The SR-IP is a SIP-compliant, PoE-powered audio device for audible and visual ring indication in SIP VoIP systems. It offers four programmable ring patterns and flashes a red LED during ringing. Its internal relay can activate external indicators like a strobe light. Equipped with a high-efficiency Class D amplifier and loud speaker, it's louder than a typical phone speaker. The SR-IP also features Automatic Gain Control (AGC) to adjust ring volume based on ambient noise, making it suitable for environments like offices, classrooms, and restaurants.
Also Known As :
Door Chime, Door Sounder, Entry Chime, Doorbell Alert, Welcome Chime, Entrance Chime
Specification :
|
Paging Unit Type |
Busy Light, Indoor, Notification, Speakers |
| Door Phone Type | Surface Mount |
| Power | PoE class 2 (<6.5 Watts) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Maximum Sound Pressure | 93dB SPL @ 1m |
| Dimensions | 5.5″ x 4.5″ x 1.5″ (140mm x 115mm x 38mm) |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Connections | (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
Core Features :
• 2 Amp SPDT relay contacts to control a Viking LPL-1 (DOD 640) or SL-2 Strobe Light (DOD 242)
• Bright red LED visual ring indicator
• SIP compliant
• PoE powered
• Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
• Surface mounts to a single gang or 4″ x 4″ electrical box or directly to a wall or post
• Extended temperature range: -40°F to 140°F
• Four programmable ring cadences: normal , double, short-short-long, short-long-short
• Programming software included
• Network downloadable firmware
• Remotely programmable
• Remotely adjust ringer volume
• Diagnostics for testing mic, speaker, and relay
