Product Information
Specification
Specification:
| Product Number: | NPD-6001B |
| Dimension (H x W x D) (mm): | 38 x 62 x 151 mm |
| Ethernet type: | 10/100BASE-TX |
| Host interface: | Ethernet |
| Input voltage (VAC) : | 100 – 240 VAC |
| Mounting type: | Wall-mounted |
| Operating relative humidity, non-condensing (%) : | 0 – 90 % |
| Operating temperature (°C): | -10 – 50 °C |
| Power frequency : | 50 Hz; 60 Hz |
| Storage relative humidity (%): | 0 – 95 % |
| Storage temperature (°C): | -20 – 70 °C |

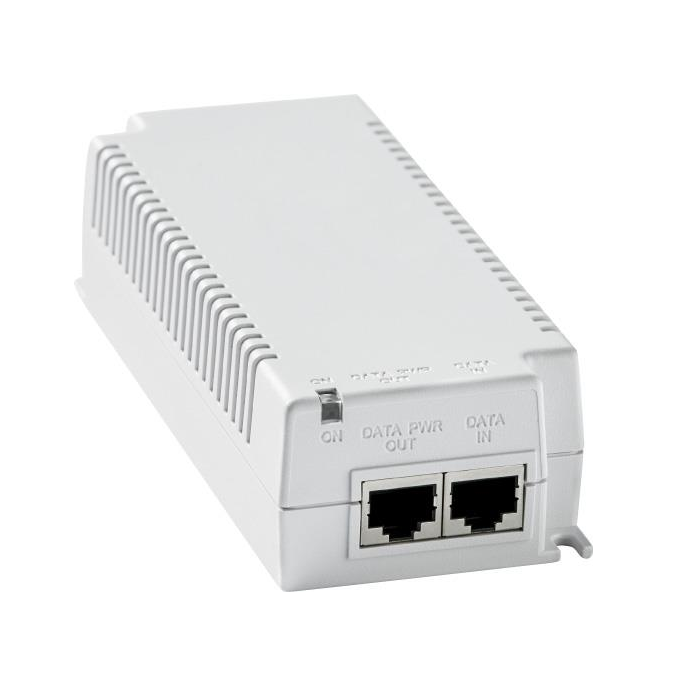

Single Port Indoor Models Mount to a Wall Midspan 60W NPD-6001B BOSCH
Description:
The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/ HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power.
Features and Benefits
•Supports high-power PoE/PoH and complies to
both the IEEE 802.3af and the IEEE 802.3at
standards
• Lightning protection
• Detects and protects non-standard Ethernet
terminals automatically
• Indoor models mount to a wall, shelf, bench or
desktop
Download PDF Spec Sheet
