SERIES 8571/11 (DISCONTINUED) 32 A WALL-MOUNTING SOCKETS - 8571/11-407
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Description | Wall-mounting socket 32 A |
| max. ambient temperature | +40 °C |
| min. ambient temperature | -30 °C |
| Entry 1 type | 8161/7-M32-2109 |
| Rated operational current | 32 A |
| Entry 2 type | 8290/3-M32 |
| Frequency range | 50 / 60 Hz |
| Colour code | black |

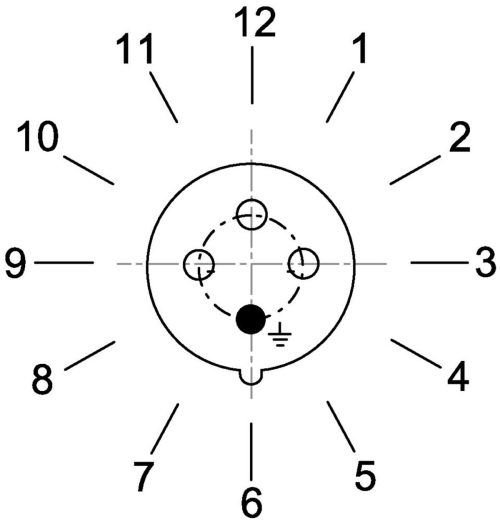

| Coding (clock hour position) | 7 |
| Product Type | 8571/11-407 |
| Product variant | Standard |
| Part Number | 8571/11-407 |
Description :-

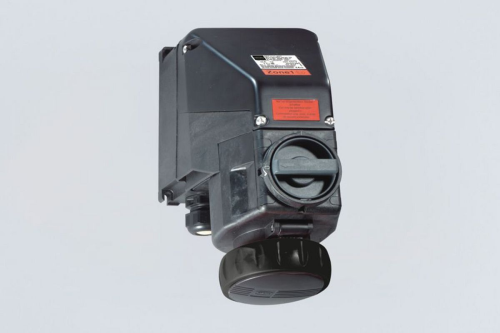

The SolConeX plug and socket devices Series 8571 are 32 A versions. An important safety criterion is the reliable load disconnect switch with the large, highly visible handle. Plugging in and unplugging is done easily and safely in 0 position. The plugs and sockets comply with IEC/EN 60309-1/-2/-4 (CEE), IEC/EN 60079-0, IEC/EN 60079-1 and IEC/EN 60079-7. The ability to plug the Ex-plug in non-Ex-sockets is guaranteed, while operation of the Ex-socket using a non-Ex-plug is reliably prevented.
Key features :-
- ☛ Optional: Pluggable Ex e or Ex i auxiliary contacts that are easily retrofittable for control and signalling purposes
- ☛ AC-3 motor switching capacity according to IEC/EN 60947-3
- ☛ Variants for use in USA/Canada available on request
- ☛ Large temperature range of use
- ☛ High mechanical impact and shock resistance
- ☛ Perfect protection against penetration of liquids and dusts
Download PDF Spec Sheet
