SERIES 8570/11 (DISCONTINUED) 16 A WALL-MOUNTING SOCKETS - 8570/11-306
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Description | Wall-mounting socket 16 A |
| max. ambient temperature | +55 °C |
| min. ambient temperature | -30 °C |
| Entry 1 type | 8161/7-M25-1707 |
| Rated operational current | 16 A |
| Entry 2 type | 8290/3-M25 |
| Frequency range | 50 / 60 Hz |
| Colour code | blue |

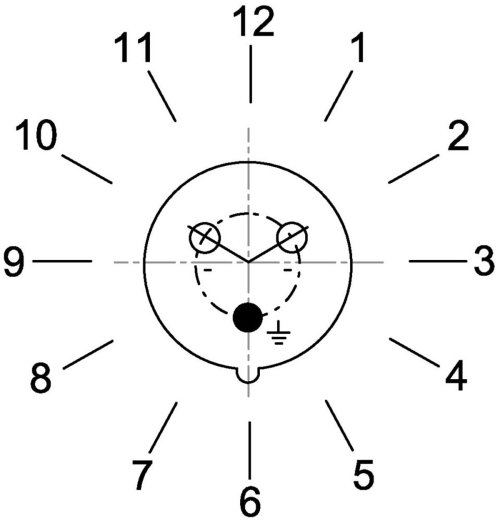

| Coding (clock hour position) | 6 |
| Product Type | 8570/11-306 |
| Product variant | Standard |
| Part Number | 8570/11-306 |
Description :-

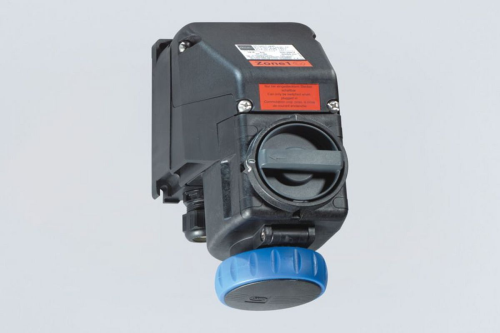

The R. STAHL Series 8570/11 SolConeX sockets for Zone 1/21 in a 3-, 4- and 5-pole version have full AC-3 switching capacity up to 16 A. The high degree of protection (IP66) ensures maximum protection against the ingress of dust and water in any application position. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with a mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature.
Key features :-
- ☛ Optional: Pluggable Ex e or Ex i auxiliary contacts that are easily retrofittable for control and signalling purposes
- ☛ AC-3 motor switching capacity according to IEC/EN 60947-3
- ☛ Variants for use in USA/Canada available on request
- ☛ Large temperature range of use
- ☛ High mechanical impact and shock resistance
- ☛ Perfect protection against penetration of liquids and dusts
Download PDF Spec Sheet
