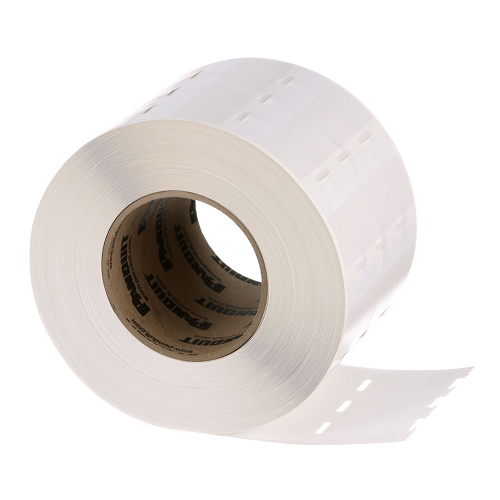

Self-Laminating Label S100X225TAT-A
About:
The S100X225TAT-A Self-Extinguishing Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Polyvinylfluoride. 1" x 2.25" (25.4 mm x 57.2 mm). Color Clear/White.
Also Known As:
Self-Laminating Label, TDP Printers Use, PVF Material, Thermal Transfer Printer Type, White Color
Specification:
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP;Category6A UTP;Category 6A FTP |
| Note | For use with TDP printers |
| Color | White |
| Material | PVF |
| Printer Type | Thermal Transfer |
| Compatible Wire Gauge (AWG) | 8 – 4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.2 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -65 |
| Number of Labels | 1500 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 0.75 |
| Print-On Area Height (mm) | 19 |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
| Part No. | S100X225TAT-A |
