RG6 Connectors RG6-50 (Pack of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | RG6 Connectors |
| UPC | 810053351796 |
| Connector Size | RG6 |
| Connector Type | Q II F-Type Compression Connector (Series 6 Universal Design) |
| Plating Material | Nickel |
| Return Loss | > 30 dB (5-1000 MHz) |
| Shielding Effectiveness | > 95 dB (0-300 MHz), > 70 dB (300 MHz - 1 GHz) |
| Screening Attenuation | > 80 dB (3 MHz - 3.0 GHz) |
| Dielectric Strength | > 1.0 kVAC for 1 minute |
| Insulation Resistance | > 5000 MΩ@ 100 VDC |
| Product Material | Nickel |
| Part Number | RG6-50 |
RG6 Connectors (Pack of 50)
Description:

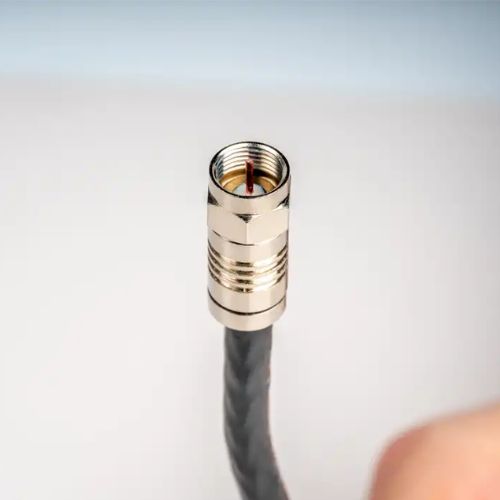

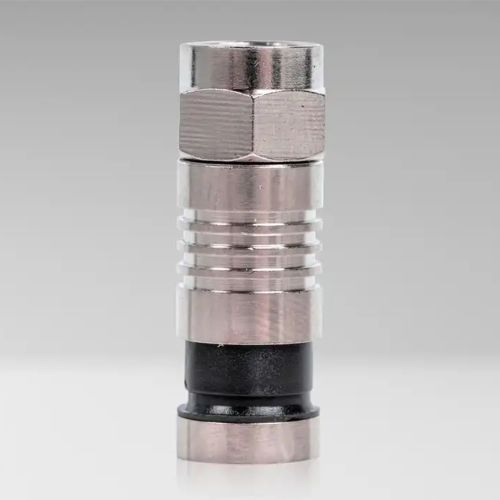

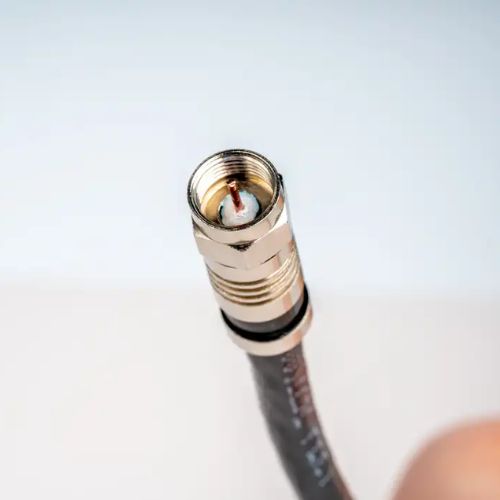

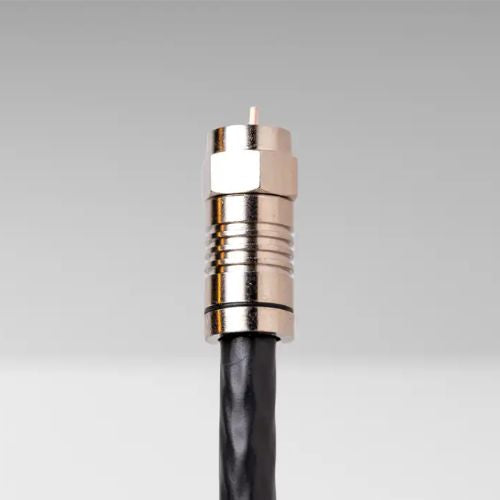

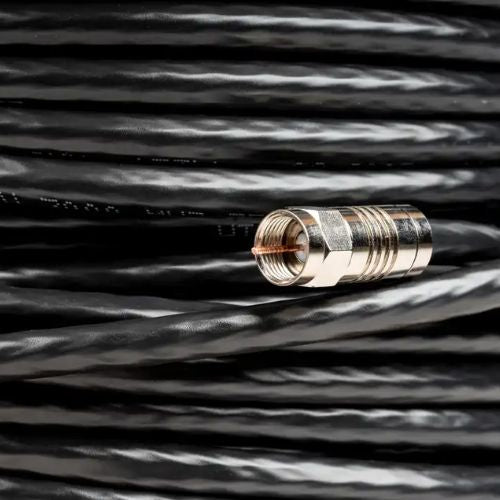

These universal RG6 compression connectors are designed for both professional and consumer applications. Featuring a one-piece all-metal construction, they deliver a secure 360° compression seal for maximum RF shielding and exceptional electrical and mechanical performance. The pre-positioned, detachably coupled advanced polymer compression system ensures a perfect and consistent fit every time.
Features:
• Universal one-piece, all-metal design compatible with Standard, Trishield, and Quadshield RG6 cables
• Advanced polymer compression system ensures precise compression on every installation
• Triple internal weather sealing protects against moisture—no external grommet required

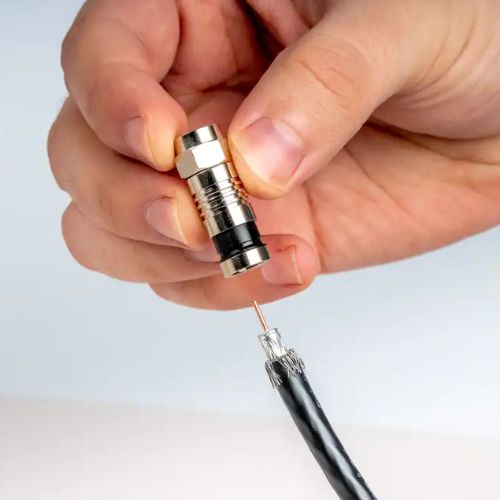

• Standard 5/16"–1/4" cable preparation using industry-standard tools
• Superior RF performance at CATV and satellite TV frequencies
• Quickshield ground feature provides built-in weather sealing to reduce signal ingress and egress

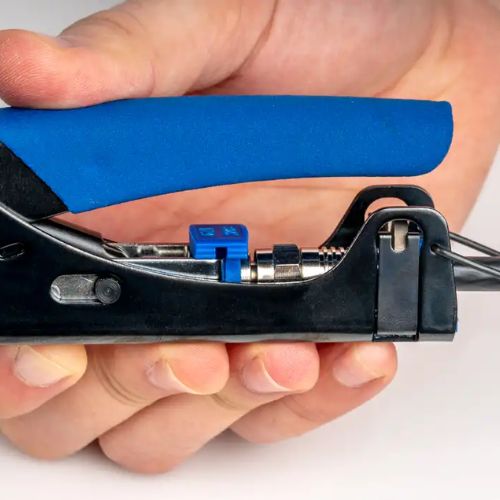

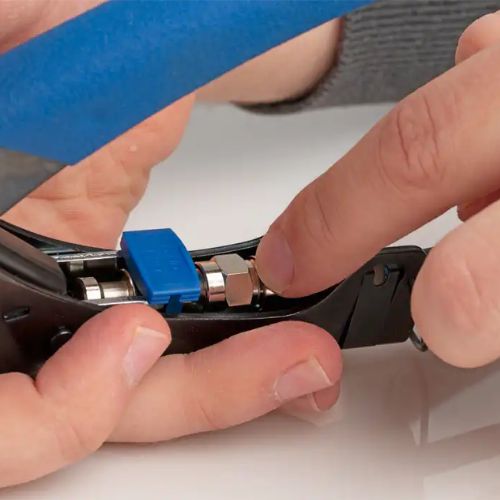

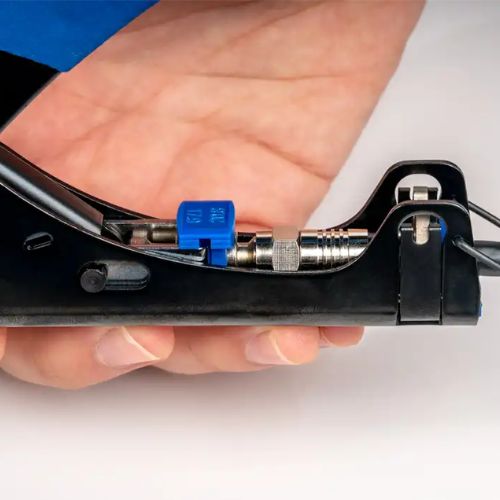

• Compatible with CTF-200, CTF-230, and CT-200 COAX Compression Tools

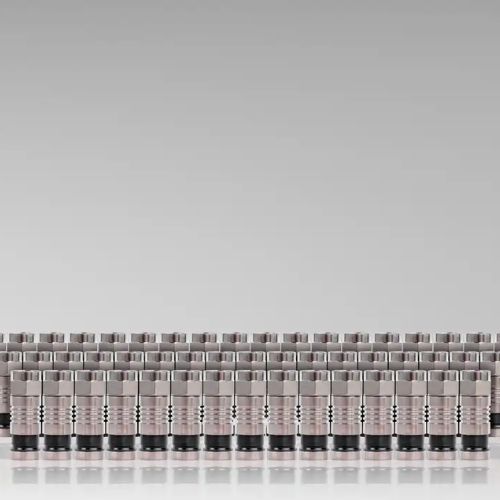

• Pack includes 50 RG6 Connectors
Download PDF Spec Sheet
