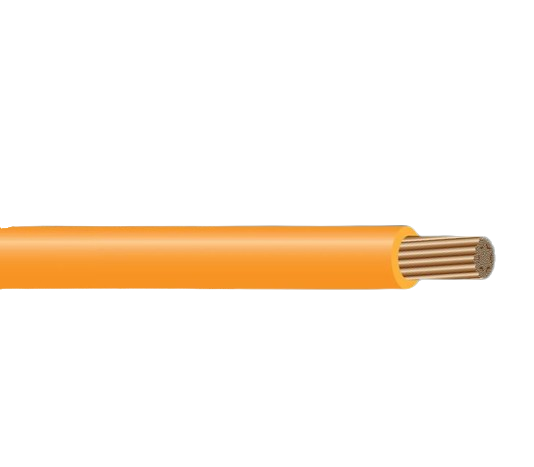

Renewaflex BESS Class K Type RHH XLPE Power Cables 2000V

Renewaflex BESS Class K Type RHH XLPE Power Cables 2000V

Also Know As:

Renewaflex Cable, BESS Cable, XLPE Power Cable, Class K Cable For Battery, Cables for Battery Energy Storage Systems, Type RHH Cables.

Applications:

Southwire’s 2000 Volt power cables are suited for use in the internal wiring of Battery Energy Storage Systems (BESS), in wet and dry locations, conduits, ducts, troughs, covered trays, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload, and 250°C for short circuit conditions. Gasoline and Oil Resistant. For CT USE sizes 1/0 AWG and larger. Rated 1000 lbs./FT maximum sidewall pressure.

Conductor: 6 - 4/0 AWG: Class K, Flexible stranded bare copper. 250 - 750 kcmil: Class I, Flexible stranded bare copper

Insulation: Cross Linked Polyethylene (XLPE) Type RHH/RHW-2

Specification:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having • • Bunch-Stranded Copper Conductors
• UL 44 Thermoset-Insulated Wires and Cables
• UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
• RoHS-3 Complies with European Directive 2015/863
• Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
• REACH - European Community Regulation
