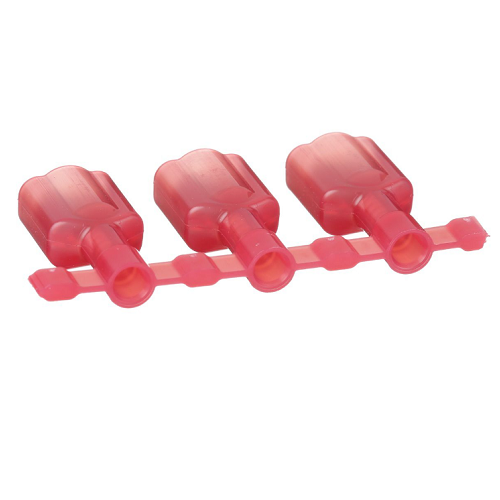

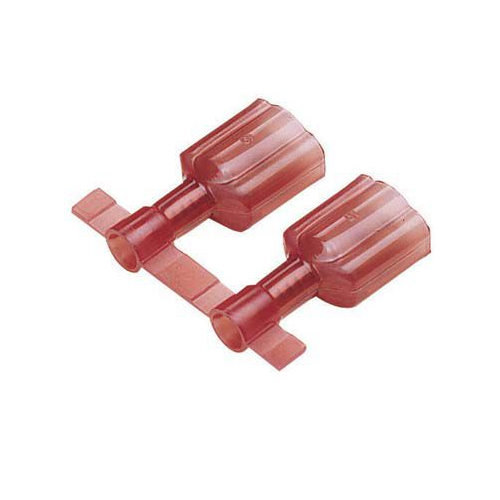

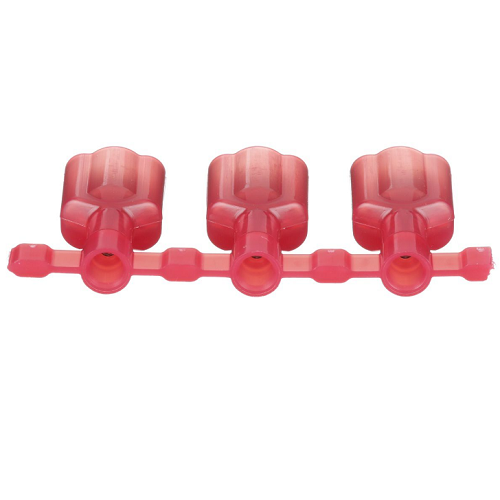

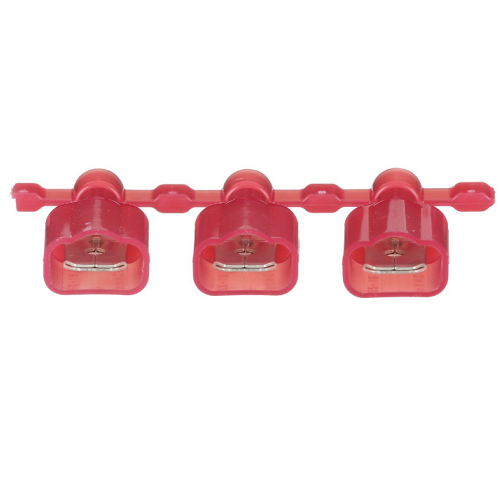

Reel Smart Male Disconnect Nylon Insulated

Product Information

Specification

About:

Reel Smart Male Disconnects are terminal connectors designed to enable quick and secure electrical connections. The nylon insulation provides added protection against short circuits and offers a safeguard against environmental conditions. Being on a reel facilitates easy storage, deployment, and consistent spacing between terminals.

Also Known As:

• Nylon-Insulated Quick Disconnects
• Reel-Based Male Terminal Connectors
• Slide-on Terminal Connectors (on a Reel)

Common Applications:

• Automotive wiring: These disconnects are frequently used in vehicles for various electrical connections due to their ease of use and secure connection capabilities.
• Home appliances: Used in connections within devices like ovens, washing machines, and refrigerators.
• Electrical panels: In both residential and commercial setups where quick, secure, and insulated connections are essential.
• Audio systems: Used for connecting speakers, amplifiers, and other audio equipment.
Industrial machinery: For quick wiring tasks and modifications in factory setups.

Standards Met:

• These connectors typically meet specific standards related to electrical safety and material quality, such as UL (Underwriters Laboratories) or CE certifications.
• They might also comply with RoHS for environmentally safe materials.

Construction:

• Terminal: Usually made from a conductive metal like tin-plated copper which provides a secure electrical connection.
• Insulation: Crafted from high-quality nylon that not only offers insulation but also provides durability and resistance against environmental conditions.
• Reel: The reel system helps in organized storage and consistent spacing of terminals, facilitating easier and quicker application.

Features:

• Quick Connection: The male disconnect design allows for a rapid yet secure connection without the need for soldering or crimping.
• Nylon Insulation: Provides electrical safety by preventing short circuits and accidental touches. The insulation also provides a degree of protection against moisture, chemicals, and mechanical wear.
• Reel System: Enhances the speed and consistency of application, especially in large-scale operations.
• Durable Construction: With a combination of high-quality metals and nylon insulation, these disconnects are built to last and withstand regular wear and tear.
• Compatibility: Designed to work seamlessly with their female counterparts and can be connected to various wire gauges, depending on the specific model.
