Raised Floor Air Sealing Grommet RFG10X8Y

Product Information

Specification

Raised Floor Air Sealing Grommet RFG10X8Y

About:

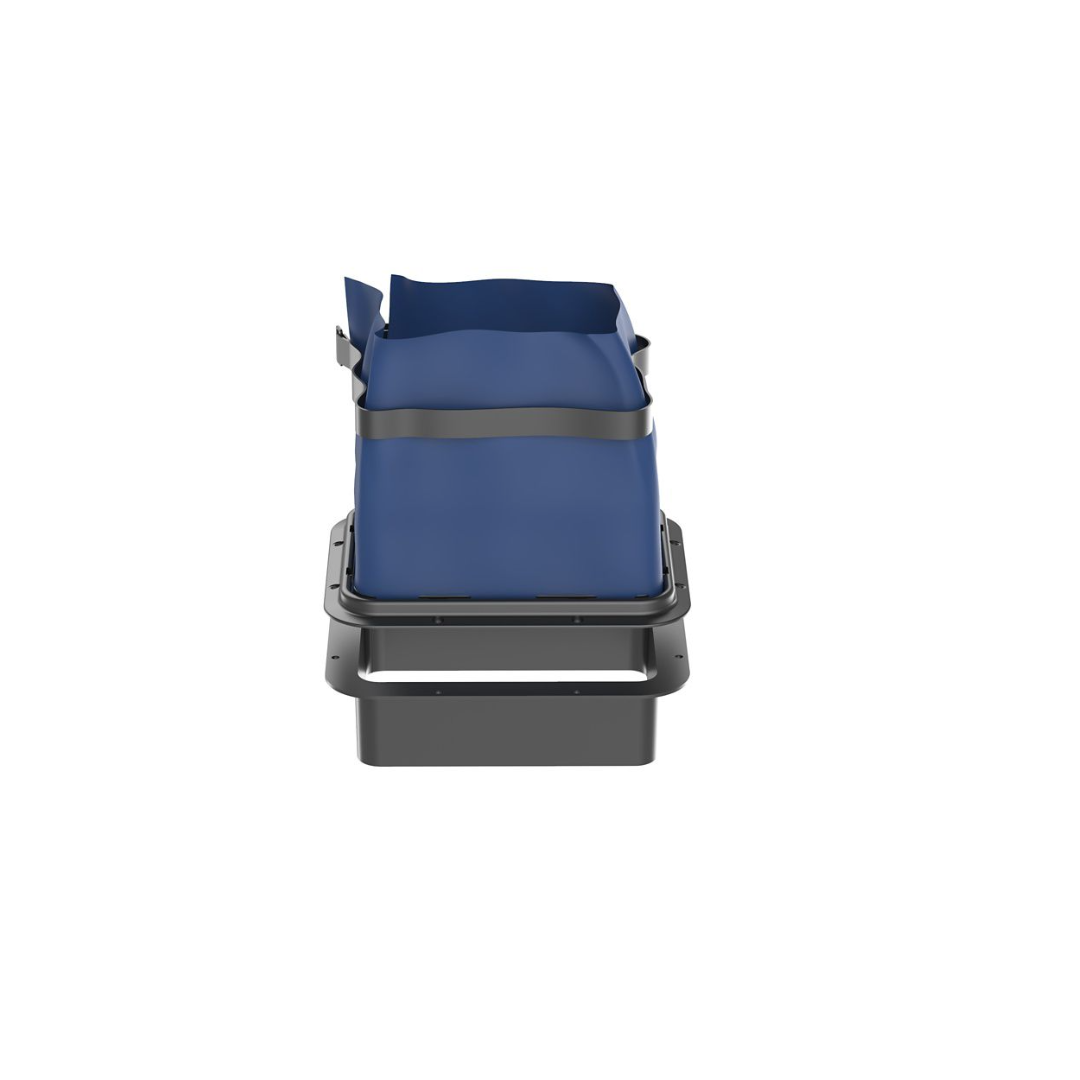

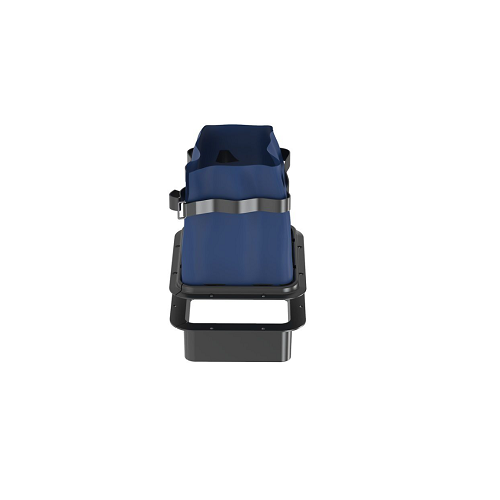

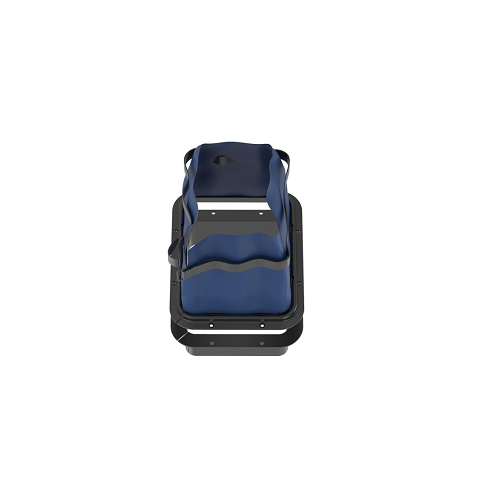

he Cool Boot Raised Floor Air Sealing Grommet is designed for hot aisle/cold aisle environments in a data center where cables pass through a cutout in the raised floor. The grommet reduces bypass airflow improving the cooling of network equipment and prevents debris from falling below the raised floor. The raised floor air sealing grommet is 8 inches L x 10 inches W (203.2mm x 254mm).

Also Known As:

Raised Floor Grommet, Air Sealing Grommet, Raised Floor Air Sealing Grommet, Navy Blue Color

Specification:

Product Type	Raised Floor Grommet
Overall Depth (In.)	0.6
Overall Depth (mm)	15.2
Overall Width (In.)	10
Overall Width (mm)	254
Overall Height (In.)	8
Overall Height (mm)	203.2
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Color	Navy Blue
Part No.	RFG10X8Y
