PVC Non-Shrink Tubing TV105-1.0C20Y
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Non-Shrink Tubing |
| Application | 1) Provides Insulation and Protection for Lead Wires, Wire Harness Assemblies, Soldered Joints and Components in Electrical and Electronic Equipment, 2) All Purpose Flexible and Non-Shrinkable |
| Color | Black |
| Material | Polyvinyl Chloride |
| Resistance Properties | Oil-Resistant |
| Maximum Voltage (V) | 600 |
| Nominal Diameter (In.) | 1.036 |
| Overall Length (ft.) | 100 |
| Standards Met | CSA 75192, UL224 VW-1, MIL-I-631, RoHS Compliant |

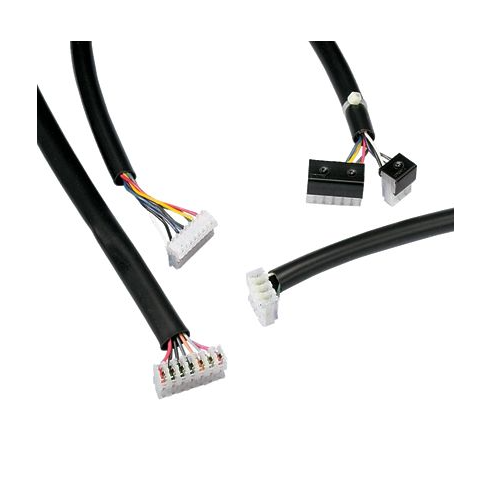

| Part Features | Provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment |
| Part No. | TV105-1.0C20Y |

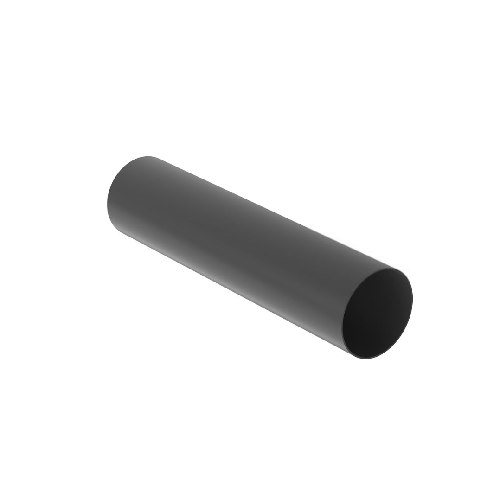

PVC Non-Shrink Tubing TV105-1.0C20Y
Description:
The TV105-1.0C20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 600 V. Material: PVC. Continuous use temperature range: -4°F – 221°F (-20°C – 105°C). 1" (25.4 mm) x 100 ft. (30.5 mm) Color Black. 1 per package.
