PVC 4Port Surface Raceway Single Gang Faceplate Fittings Off-White T70FH4IW
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

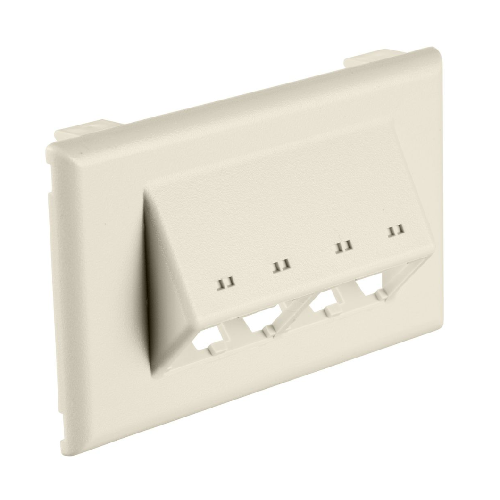

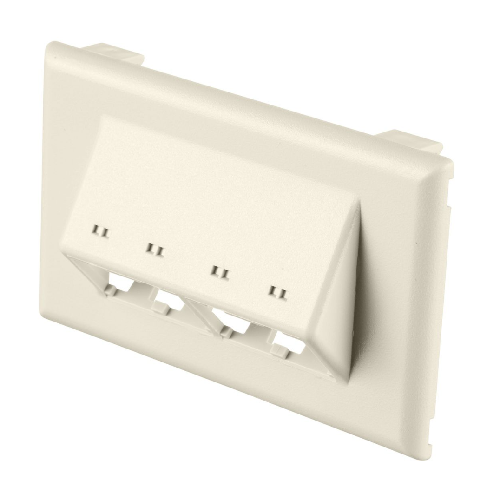

The snap-on horizontal sloped communication faceplate is used with T-70 raceway. Accepts four Panduit Mini-Com Modules (not included). No additional mounting hardware required, Off-White.
Also Known As :
Conduit Track Fittings, Cable Raceway Accessories, Fittings, Wire Channel Fittings, Cable Management Fittings, Surface Duct Fittings
Specification :
| Product Type | Faceplate |
| Gang Opening Type | Single Gang |
| Sub Brand | Mini-Com |
| Color | Off White |
| Material | PVC |
| Mount Orientation | Horizontal |
| Number of Ports | 4 |
| Standards Met | UL5A Listed; CSA 22.2 No.62-93; RoHS Compliant |
| Outlet Orientation | Sloped |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 114.3 |
| Application | Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring |
Features :
• Snap-on one gang rectangular communication faceplate
• Used to cover one NEMA standard rectangular communication module frame
• Module frame screw mounts directly to underside of snap-on faceplate
• No mounting device needed
• Supplied with one mounting screw
Download PDF Spec Sheet
