Product Information

Specification

Note: Image is an illustration purpose only, may not reflect the exact color sold.

About:

Interlock Armored Optical Fiber Cables provide an extremely well protected cable package ideally suited for mechanically challenging environments. The armor is available in aluminum and comes with either an OFCR (riser) or OFCP (plenum) rating. This design offers the system designer a product that can be installed in areas where added
mechanical protection and security are required. The flexible interlock armored cable design is also popular for retrofit applications and eliminates the need to install rigid conduit while still meeting building code guidelines.

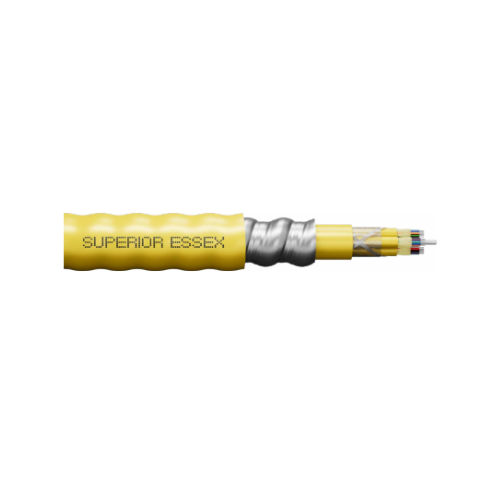

Interlock Armored: Flexible, heavy duty interlocking aluminum tape helically applied
over the inner cable core; further protection is provided by an optional flame retardant outer jacket
Performance Compliance: UL 1569, UL 1651, CSA C22.2 No. 232, UL 1666, NFPA 262, Telcordia GR-409-CORE, Issue 1, Telcordia GR-409-CORE, Issue 2, ANSI/ICEA S-83-596, ANSI/TIA-568.3-D.

Also Known as:

24 Fiber Riser Cable, TeraFlex Bend Resistant Laser Optimized 50/125, Multimode Optical Fiber Cable, Non-Plenum Cable, Non-Plenum Multimode, OM4 Riser Cable, OM4 Tight Buffer, OM4 Interlock Armor Cable.

Applications:

• Intrabuilding backbones
• Conduit pathways
• Service entrance to communication closets

Benefits:

• Reduce incidences of circuit disruption due to rodents or mechanically abusive applications
• Contributes toward  LEED
• Eliminates the need for multiple cables for installation

Features:

• Thick, flexible metallic armor
• Flame retardant, UL Listed designs

Specifications:
