PowerWedge Mount PDU Controlled Horizontal Rack 35882-5A2

Product Information

Specification

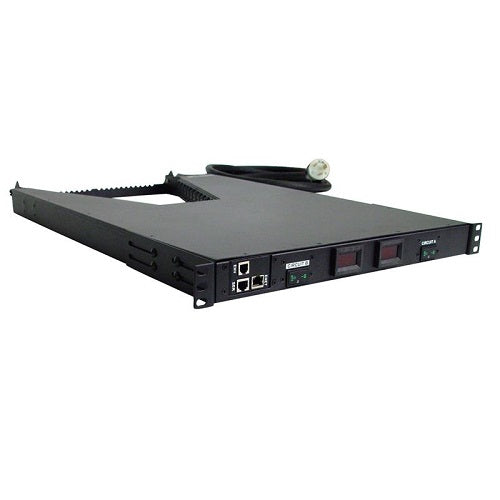

PowerWedge Mount PDU Controlled Horizontal Rack 35882-5A2

Description:

The PowerWedge distributes power to multiple devices from a single power connection. The compact design provides 24 power connections in 1U of rack-mount space. Switched outlets allow remote power cycling and by-outlet current monitoring. Circuit breakers limit current to protect circuits from overload. Local and networked current meters provide easy current monitoring and a sensor port allows remote temperature and humidity monitoring with an optional external sensor. The PowerWedge also integrates with CPI’s Scalable Enterprise Management Application (SEMA) software providing real-time IP-based power monitoring across your entire enterprise network.

Key Features and Benefits

• Size: 19” EIA x 1U x 28”D (711 mm), Black
• For indoor use only in environmentally controlled areas
• Power Cord: Attached, 10’L (3 m) not rated for plenum use
• Circuit Protection: Magnetic (M) circuit breakers are in-line with each circuit segment

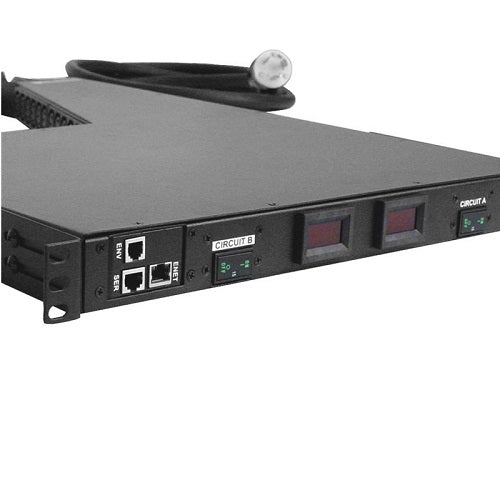

• Current Metering: Digital ammeters with digital displays are in-line with each circuit segment
• Current Monitoring:
⁌ 10/100 Mbps RJ-45 Ethernet connection and (1) RJ-45 Serial Connection
⁌ Monitor PDU through the Ethernet connection using a web browser (http), CPI’s SEMA software or an application that supports SNMP v1
• Controlled/Monitored Outlets:
⁌ Turn outlets on and off and remotely cycle power to equipment
⁌ Set initial power on and cycle delays to power multiple outlets on at user defined intervals
⁌ Monitor current use at each outlet
⁌ When used with SEMA software, you can report individual equipment power use and see a current limit that will prevent unused outlets from being turned on to prevent circuit overload
• Certifications: UL Listed, NWGQ.E212076; FCC, ICES-003 Class B, CE Mark
• Includes Rack/Cabinet Mounting Brackets:
⁌  Requires four-point (front/rear) support
⁌  Fits equipment mounting rails set 25” (635 mm) to 31” (787 mm) apart.
