Portable Handheld Vacuum Meter 840064
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Dimensions |
7" × 3" × 1½" (180 × 75 × 35 mm) |
| Certification | No |
| Weight | Meter 8 oz (220 g) Probe 6 oz (170 g) |
| Part Number | 840064 |

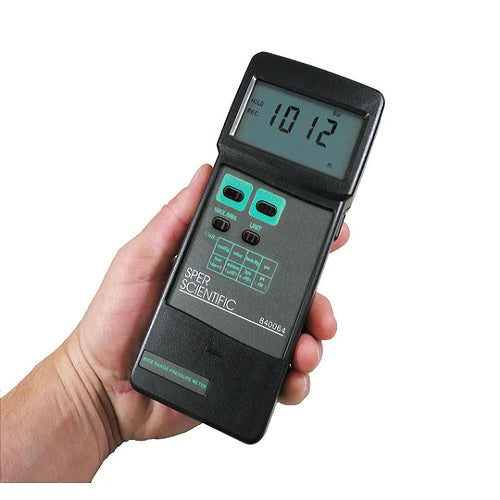

Portable Handheld Vacuum Meter
Technical Specification:
| Unit | Range | Resolution | Accuracy |
|---|---|---|---|
| mbar | 0 to 1500 mbar | 1 mbar | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| Kpa | 0 to 150.0 Kpa | 0.1 Kpa | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| Pa | 0 to 150,000 Pa | 100 Pa | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| torr | 0 to 1125 torr | 1 torr | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| mm Hg | 0 to 1125 mm Hg | 1 mm Hg | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| micron | 0 to 1,125,000 micron | 1000 micron | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| In Hg | 0 to 44.30 inch Hg | 0.02 inch Hg | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| PSI | 0 to 21.75 psi | 0.01 psi | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
Portable Meter for Absolute Vacuum Pressure Measurements
Description:

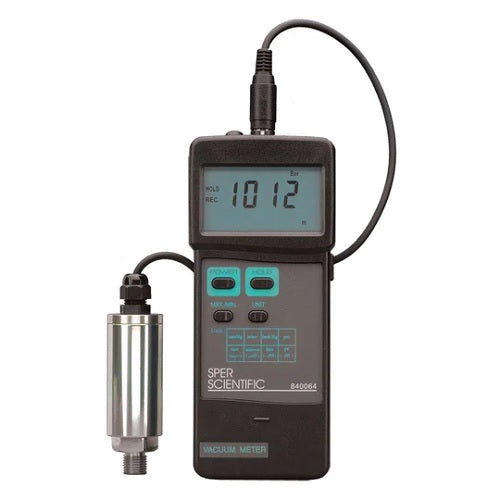

This meter is used in hospital labs, crystal growing, solvent recovery, distillation, and rotary evaporation. Also used in HVAC, automotive, and other industrial applications. Includes a detachable heavy-duty probe with a ¼ PS connector for liquid, air, oil, and gas.

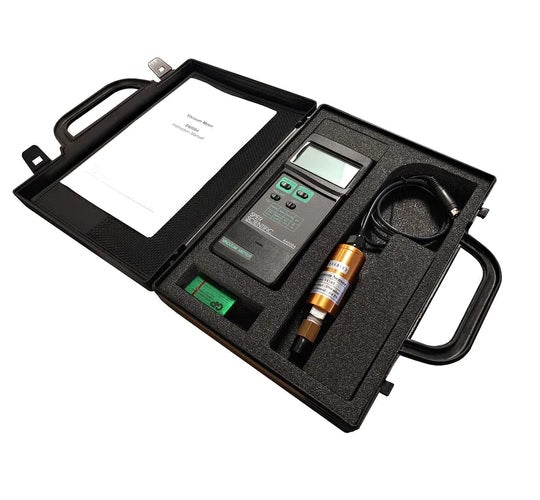

Features a large display with eight units of measure, min/max, hold, low battery indicator, and auto power off. Comes ready to use in a foam-lined, hard-shell carrying case, with a 9V battery and instructions.
Optional Add-ons:
Water Resistant Instrument Pouch - 840090.
* N.I.S.T. Traceable Certificate of Compliance available at 840064C.
Download PDF Spec Sheet
