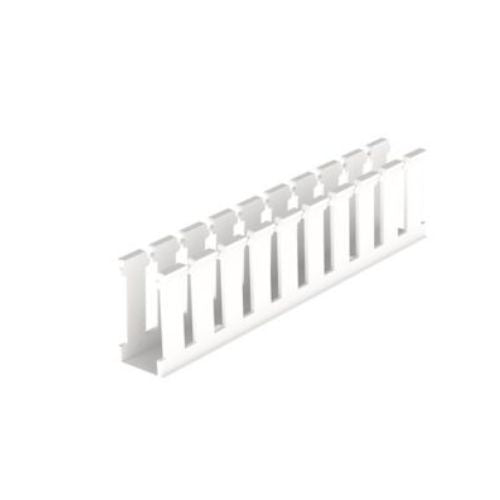

Polyphenylene Oxide Wide Slot Base Wiring Duct White NE1X3WH6 (Pack of 6)

Product Information

Specification

About:

• The Polyphenylene Oxide (PPO) Wide Slot Base Wiring Duct is engineered for robust cable management and protection. Designed with a wide slot base, this duct accommodates a variety of wire and bundle sizes while providing enhanced rigidity.
• Made from Polyphenylene Oxide (PPO), it offers excellent flame resistance and does not release toxic or corrosive gases, ensuring a safe and durable solution for electrical installations. It includes mounting holes for easy and secure installation.
• The NE1X3WH6 Halogen-Free Wide Slot Wiring Duct is designed for superior rigidity and accommodates a variety of wire and bundle sizes. It features upper and lower scorelines for easy removal of finger and sidewall sections. Made from halogen-free Polyphenylene Oxide (PPO), it meets UL 94 flame class V-0 standards and is recognized for continuous use at temperatures up to 95°C (203°F).
•  The duct includes mounting holes for secure installation, measures 3.06" x 1.14" (77.7 mm x 29.0 mm) in external dimensions, and comes in a 6' (1.83 m) length. The cover is sold separately, and the duct is available in white with 6 pieces per package.

Also Known As:

PPO Wide Slot Wiring Duct, Polyphenylene Oxide Cable Duct, Wide Slot Cable Duct, PPO Cable Routing Duct, Wire Management Duct, Electrical Wiring Duct.

Specification:

Features:

• Halogen-free wide finger and slot design provides greater rigidity and supports a wide range of wire and bundle sizes.
• Upper and lower scorelines allow for easy removal of finger and sidewall sections.
• Environmentally safe halogen-free material that does not release corrosive or toxic gases.
• Includes standard mounting holes for secure installation.
• Height of 3 inches (76.2 mm).
