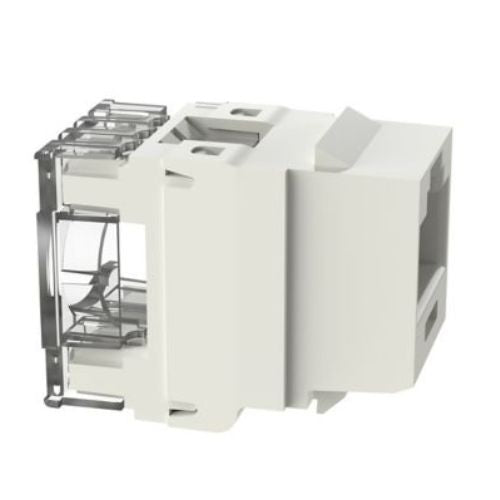

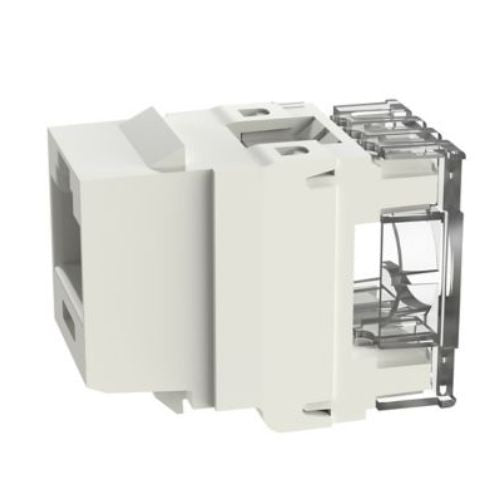

Polycarbonate Punchdown Unshielded UTP Jack Module Off White NK688MIW-Q
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The Polycarbonate Punchdown Unshielded UTP Jack Module is designed for reliable network connectivity, providing secure terminations for 4-pair, twisted pair cables. Constructed from durable polycarbonate material, this module ensures long-lasting performance in various environments.
• It features an 8-position, 8-wire configuration compatible with standard keystone interfaces and is color-coded for T568A and T568B wiring schemes, simplifying installation. The unshielded design is ideal for environments where electromagnetic interference is minimal. This jack module is suitable for use with faceplates, surface mount boxes, and patch panels.
• The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is engineered to terminate 4-pair, 22-26 AWG twisted pair cables with precision. Each module undergoes rigorous factory testing to ensure it surpasses industry standard performance requirements.
• The contacts are plated with 50 microinches of gold, providing superior conductivity and reliability. Each jack is individually serialized for quality assurance and is fully compatible with keystone interfaces, including NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is available in international white and comes in packages of 25.
Also Known As:
Polycarbonate UTP Jack Module, Unshielded Punchdown Jack, UTP Keystone Jack, Polycarbonate Ethernet Jack, Unshielded RJ45 Jack Module, Polycarbonate Network Jack Module.
Specification:
| Product Type | Jack Module |
| Color | Off White |
| Body Material | Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Depth | 1.16 In |
| Height | 0.9 In |
| Length | 1.16 In |
| Width | 0.65 In |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant |
| Part No. | NK688MIW-Q |
Features:
• Meets Category 6 and 5e performance requirements.
• Bulk packaged for high-volume installations, speeding up installation and reducing on-site waste.
• No punchdown tool required for Category 5e; optional termination tool available to ensure conductors are fully terminated.
• 8-position, 8-wire Keystone modules are color-coded for T568A or T568B wiring schemes.
• Terminates 4-pair, 24 to 22 AWG, 100 Ohm solid unshielded twisted pair cable.
• Compatible with NetKey® Faceplates, Surface Mount Boxes, and Modular Patch Panels.
