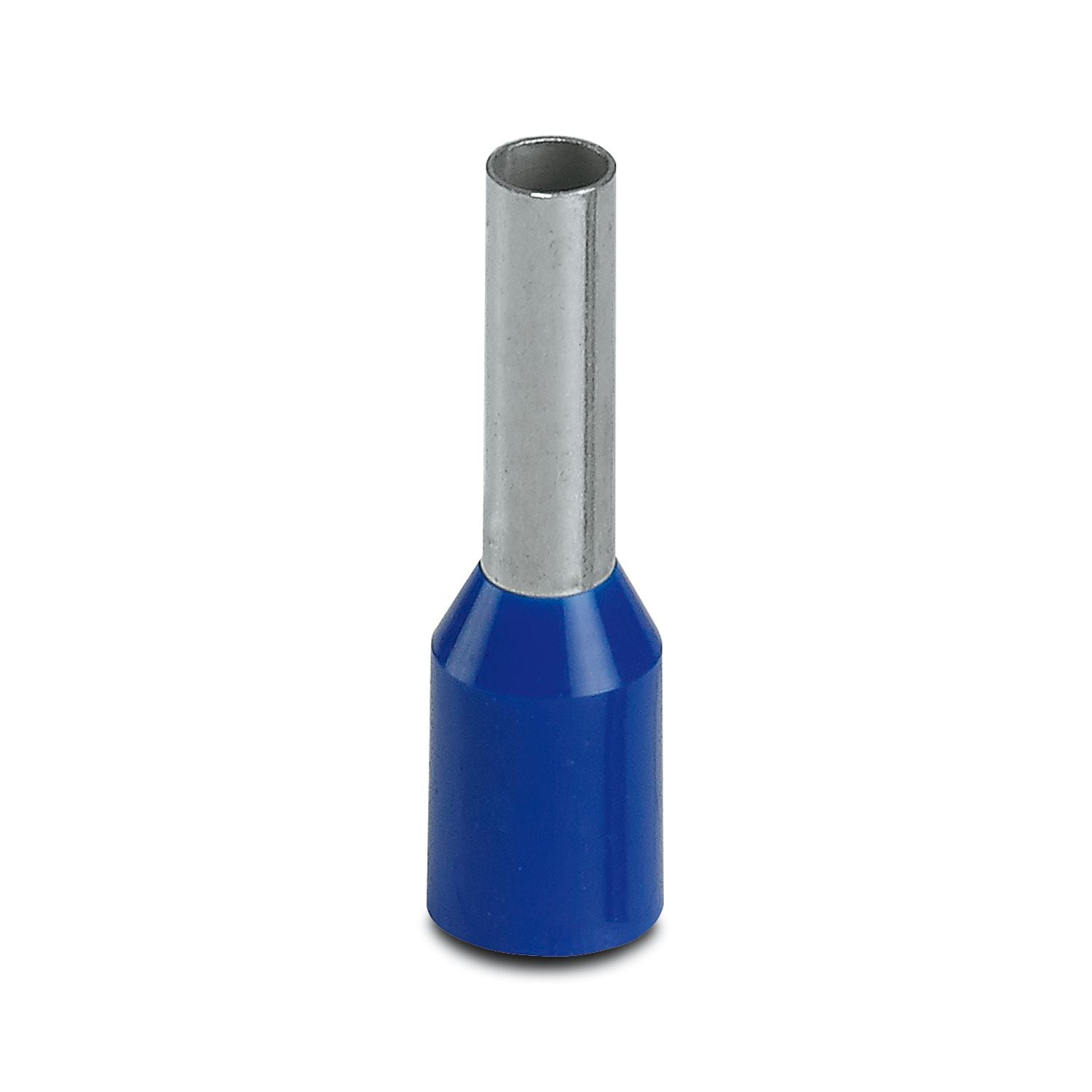

PHOENIX CONTACT FERRULES FOR POWER CABLE - 3200522
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product type | Cable end sleeve |
| Set comprises | 1202072 CRIMPSET 6 |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG max. | 14 |
| Stripping length | 11 mm |
| Color | blue |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Components | free from silicone and halogen |

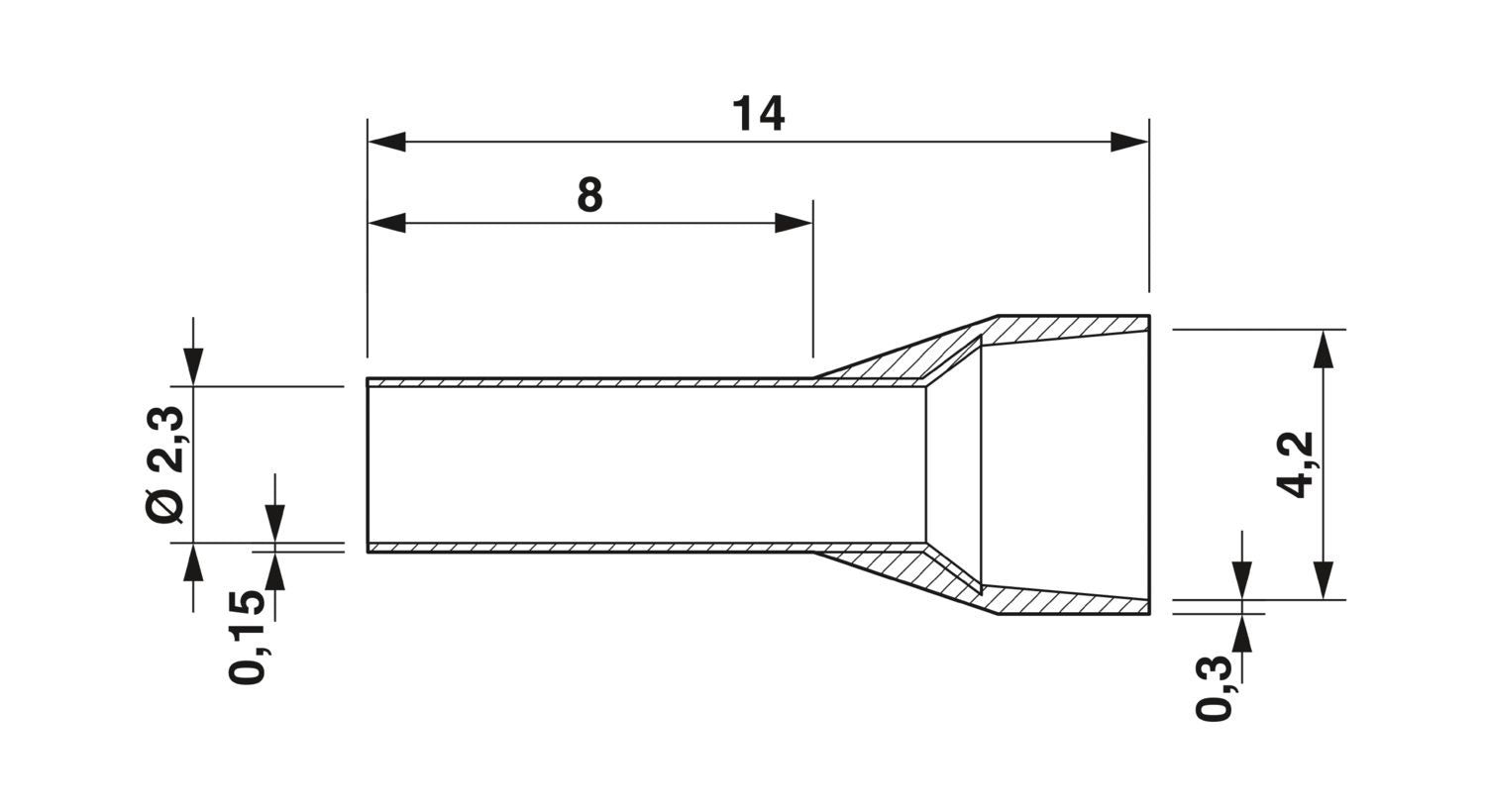

| Sleeve length | 8 mm |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Design according to standard | DIN 46228-4, UL 486F-E |
| Part Number | 3200522 |
Description :-
A special feature of AI... ferrules with insulating collar is that
the closer the connections are, the more reliable the
insulation is and the less likely the wires are to splice. The
dimensions of the ferrules correspond to DIN 46228-4.
The metal insulating sleeve is made from a soft electrolytic
copper (CU-DHP) with tin plating, which ensures optimum

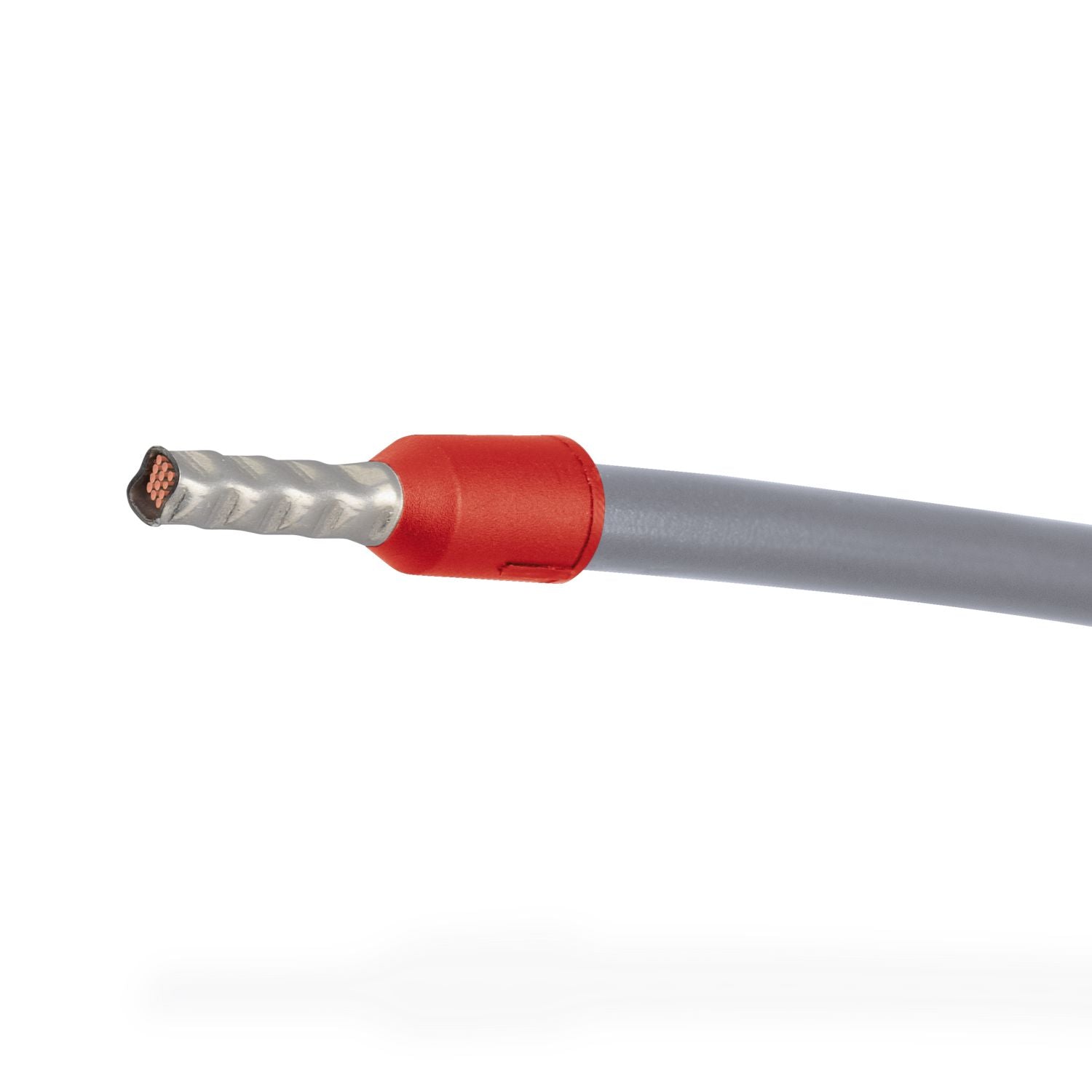

connection when crimped with the appropriate
Phoenix Contact tools.
The insulating collar made from polypropylene, which is
resistant to extreme heat, insulates and simplifies fitting
onto the wire without having to splice the individual litz wires.
The cross section sizes are color coded. They are listed
according to DIN 46228-4, Weid.
Key Features :-
- ☸ The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
- ☸ The insulation reliability of close connections is increased and the splicing of wires is prevented
Catlog:-
Download PDF Spec Sheet
