Pemsa Rejiband Wire Mesh Cable Tray 4"H x 24"W x 10'L CPI 60213600-003

Product Information

Specification

Height	4" (100 mm)
Width	24" (600 mm)
Finish/ Color	Zinc Electroplate

DESCRIPTION:

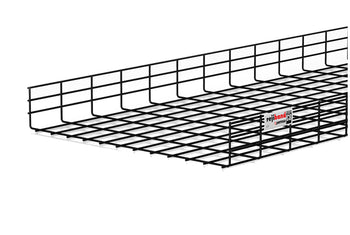

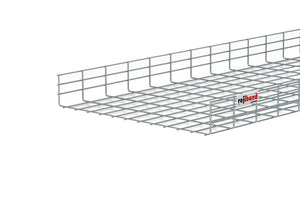

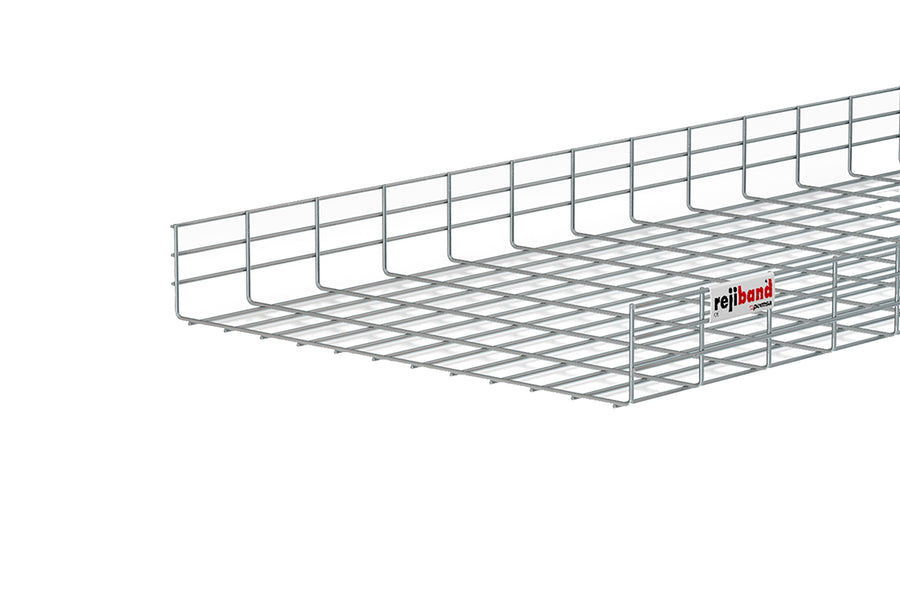

The Pemsa® Rejiband® Wire Mesh Cable Tray is a complete, easy-to-install pathway solution that can be supported from the wall, ceiling, floor, or from the tops of CPI Rack and Cabinet Systems. The Pemsa Rejiband Wire Mesh Tray features a unique construction with a rounded safety edge along the top of each wire that protects installers and cables from getting cut. For corrosion resistance in wet environments, the proprietary BLACK C8® finish option meets resistance class IEC 61537 Class C8, while retaining the ease of bonding properties of the traditional zinc-plated tray.

FEATURES AND BENEFITS:

•Increased safety—Unique construction ensures the tops of trays are rounded and smooth to protect installers and cables from cuts.
•Flexible pathway—Tray can be cut and formed into turns and transitions using standard splices, simplifying design and components selection.
•Fast installation—A range of fast-connecting splices and supports speedy assembly and installation.
•Electrical continuity—Zinc plating allows bonding through splice connections for electrical continuity.
•High corrosion resistance—The BLACK C8 finish option meets resistance class IEC 61537 Class C8, delivering corrosion resistance almost equivalent to stainless steel. Electro galvanised finish is also available
•Wide range of accessories—Allows quick interface with electrical fittings and superior support when transitioning network cables.
•Available in two heights and six widths
•Sold individually in 10’ (3 m) lengths
