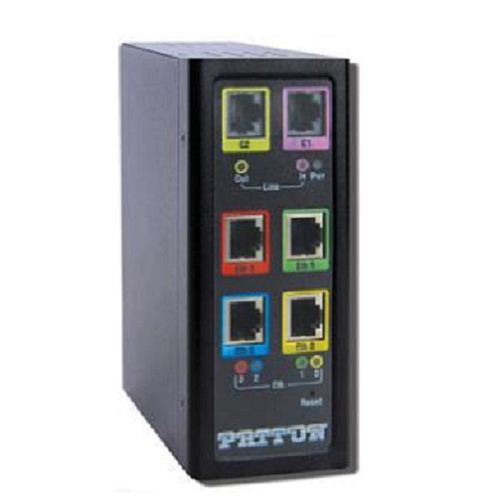

Patton CL1314MDE/EUI Multi Drop Ethernet Extender
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Protocol | Transparent to higher layer protocols |
| Transparent to higher layer protocols | Transparent to higher layer protocols |
| Line Rates | Rates from 192 kbps to 5.7 Mbps, selectable in all 64 kbps increments up to 5.7Mbps |
| Line Coding | TC-PAM 16 for rates of 192 kbps to2.3 Mbps; TC-PAM 32 above 2.3 Mbps |
| Front Panel LED Status Indicators | WAN: Link, LAN (Ethernet): Link/Act,Powe |
| Connectors | 2 x RJ-45 on copper line side and 4x10/100 Ethernet |
| Line Interface | Transformer coupled, 1500 VAC isolation |
| Management | DIP switch, Telnet console (status only, no configuration) |
| Power | External 90–260 VAC, 50–60 Hz • (Universal Input) via terminalblock |
| Operating Temp. | -40 to 185°F (-40 to 85°C) |
| Humidity | 5 to 95%, non-condensing |
| Altitude | 0 to 15,000 ft (0 to 4,600 m) |
| Dimensions | 2.25W x 5.62H x 4.66D in. (5.7W x 14.27H x 11.83D mm) |
| Part Number | CL1314MDE |
Description:
The CL1314MDE Multi-Drop Ethernet Extender, when paired with any CL1314 Extender, simplifies Ethernet extension. The MDE series allows users to transition from outdated serial communications to cost-effective Ethernet (IP) with ease and affordability. With plug-and-play installation, the CL1314MDE utilizes existing copper twisted-pair infrastructure to connect Ethernet devices and networks over long distances at moderate speeds. In addition to enabling multi-drop functionality, the MDE Extender also acts as a repeater, doubling the maximum distance with each hop.
Key Features:
• High Speed Extension Achieve speeds up to 5.7 Mbps.
• Extended Temperature-40 to 85°C operation.
• CopperLink 2-Wire Connection Easy 2-wire CopperLink connections via built-in RJ-45 ports.
• Multi-rate Selection Just plug the units in and select the ideal userconfigurable rate for your application.
• Transparent LAN Bridging Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.

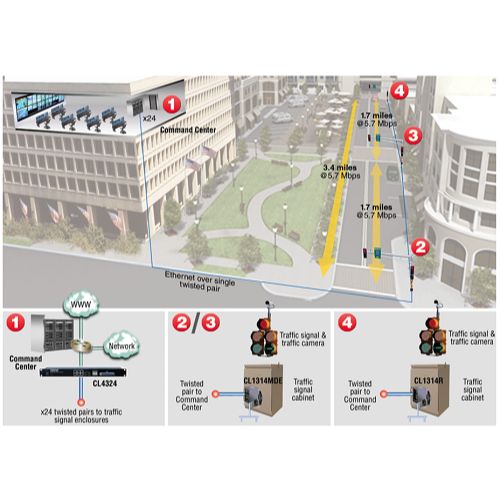

• Flexible Uses Can be used as either an long distance Ethernet extension (repeater) and/or in Multi Drop Ethernet applications
• Automatic Learning, Aging, andFiltering Keeps local traffic local, ensuring efficient utilization of the long-range link.
