Patented “Twist Lock Grommet” Tool-Free Self Securing and Locking Wire/Cable Pass-Thru, with Adjustable Cap Slider Opening

Product Information

Specification

Patented “Twist Lock Grommet” Tool-Free Self Securing and Locking Wire/Cable Pass-Thru, with Adjustable Cap Slider Opening

Description

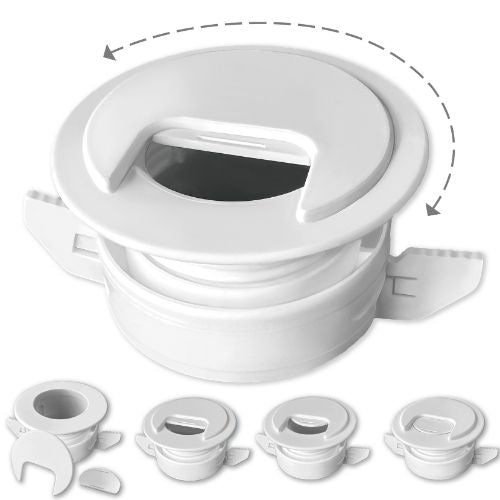

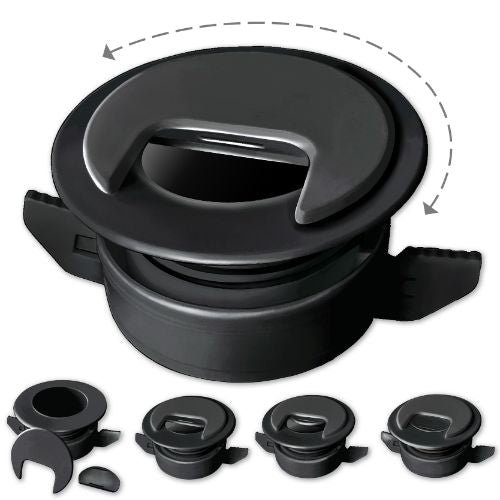

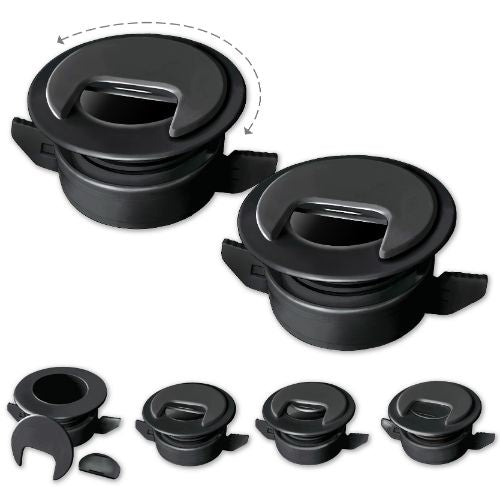

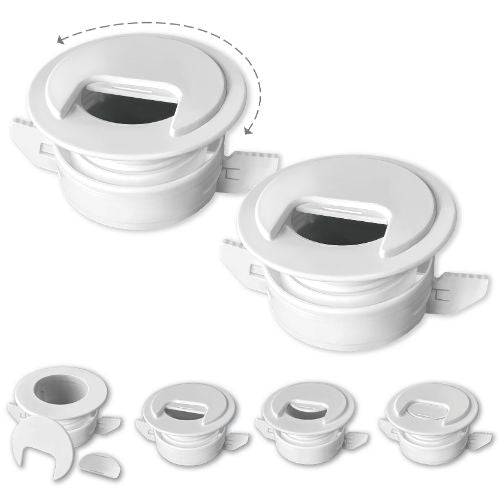

Pass wires/cables through TLG, position the cap opening, and snap on the tube. Cap has an adjustable and removable slider for full open, full closed, and everything in between positioning. To adjust the slider, hold the cap's front side down in one hand. With both thumbs, push the slider raised bar forward or backward to the desired position. The front of the slider has two nail indents, which can be used to apply force if needed.

Features

• Remove and use the front side of the cap as a template to outline the surface opening. Using a 2 3/8″ hole saw or other power/hand saw of your choice, make an opening in the surface.

• Rotate wings inside the collar to non-activated mode and turn the tube until touching the wing edges.

• Insert TLG into the opening, press and hold the tube rim against the surface. Insert your forefinger into the tube and push each wing outward until you feel it click into activated mode.

• With both hands, slowly pull the tube forward, using light force, until the collar top is in the back of the surface opening and wing tops are touching the surface.

• Turn the tube clockwise, using a light pulling force, until the tube rim is touching the surface, and then using two or three fingers, spread them against the inner tube and press the thumb on the tube rim, for the final few securing and locking turns.
