Part Clamp for Pemsa Rejiband Wire Mesh Cable Tray; Black C8 CPI 64080060-050

Product Information

Specification

Finish/ Color

Black C8

DESCRIPTION:

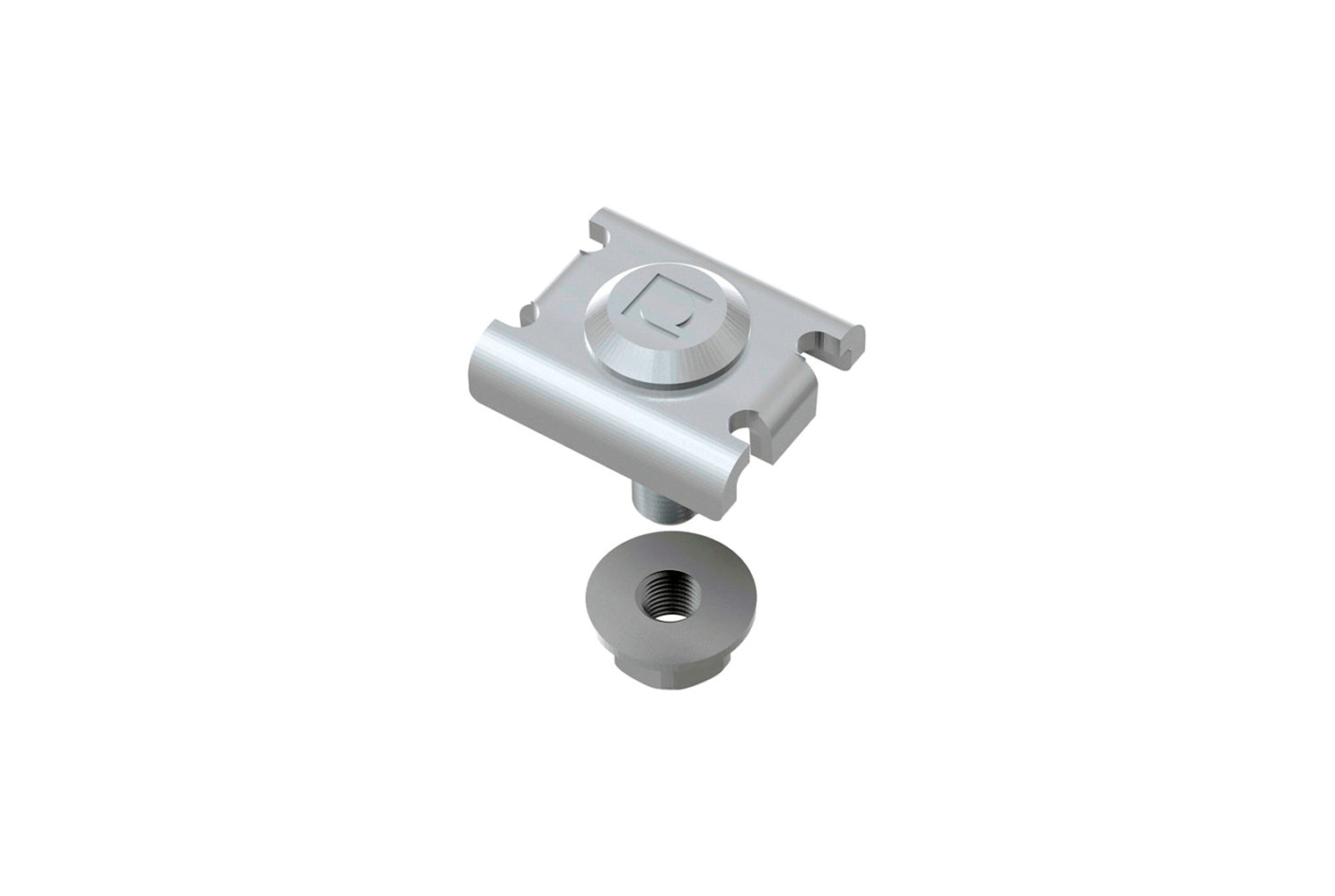

Metal fixing for the attachment of supports or other accessories to Rejiband wire mesh trays. It consists of a 20 mm wide plate with a captive M6 screw and nut and is suitable for connection to trays of 35, 60 and 100 mm in height and all widths. Made of steel and available in various Protection Systems. With BK8 protection system, Zinc Nickel black finish

ADVANTAGES:
•Precise adjustment and maximum resistance.
•Available in various protection systems: EZ, BC, GC or high resistance BK8, depending on the type of application.
•Large saving in time and cost of the installation.
•Quick installation thanks to the captive screw.
•E90 fire resistance (90 minutes, 1000°C) according to DIN 4102-12.
