Panel Mount DisplayPort Cable 4K x 2K Video Extender Cord W/ Panel Mount DP Connector Monitor Cable

Product Information

Specification

Panel Mount DisplayPort Cable 4K x 2K Video Extender Cord W/ Panel Mount DP Connector Monitor Cable

Applications:

• Extend your DisplayPort interface and allow you to screw mount it to a panel

Description:

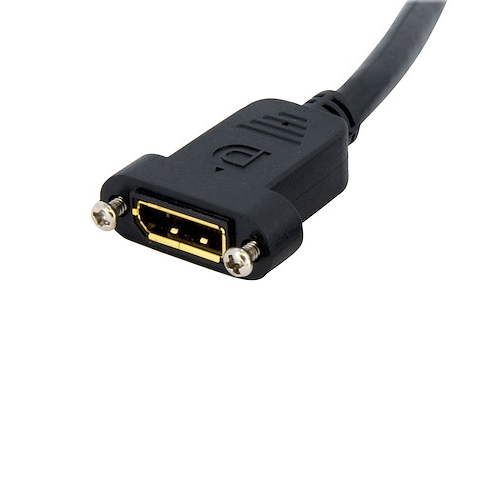

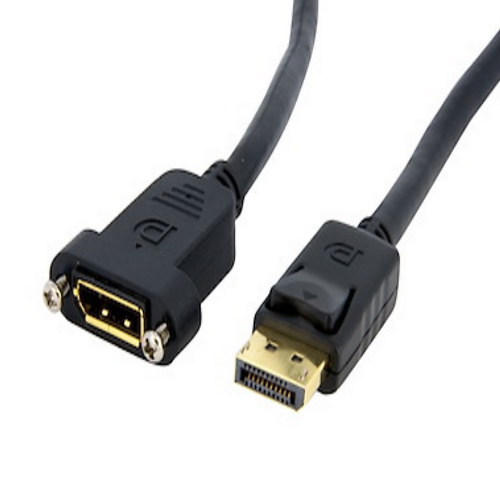

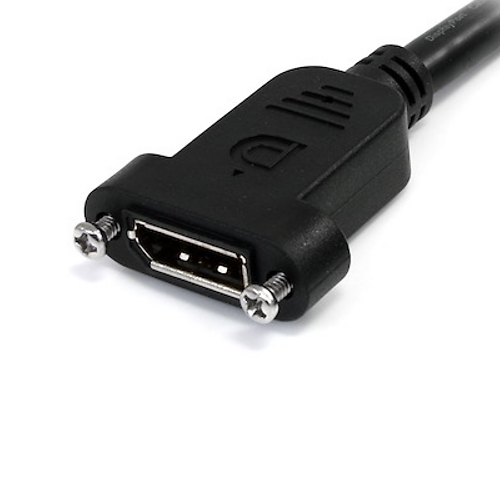

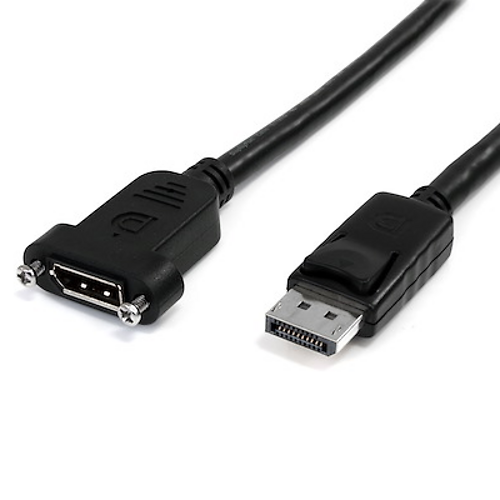

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy-to-access DisplayPort connection on any machine port or faceplate.

Advantage:

• Provide power where necessary, using all 20 pins of the DP connectors

• Allows you to install a panel mount DisplayPort port up to 3ft away from your video card

• Easy to use and install

Features:

• PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

• RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure onto a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection

• QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable/video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
