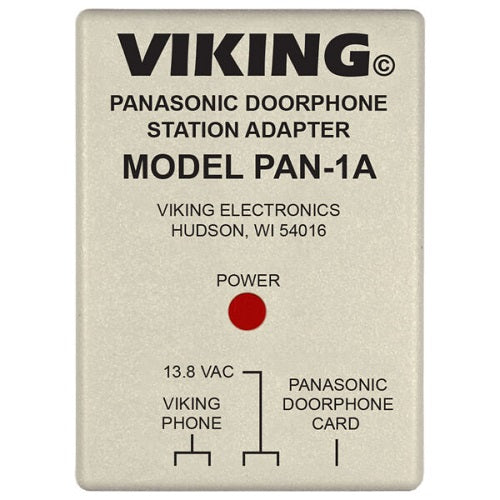

Viking PAN-1A – Panasonic Doorphone Station Adapter
About :
The Viking PAN-1A allows Viking “E” series speaker phones to interface with Panasonic Doorphone/Door Station Cards, replacing models like the Panasonic KX-T30865 or KX-T7775. It enables full use of Panasonic's system features while integrating Viking's reliable entry phones. Some models, like the E-35, E-50, E-65, and E-75, include color video cameras, and all models offer an Enhanced Weather Protection (EWP) option for outdoor use.
Also Known As :
Entry Phone Adapter, Doorphone Interface Module, Door Station Converter, Intercom System Adapter, Doorphone Connector, Entry System Adapter, Doorphone Converter Module
Specification :
|
Accessory Type |
Adapters & Connectors |
| Power | 120V AC/13.8V AC 1.25A UL listed adapter provided |
| Operating Temperature | 32°F to 90°F (0°C to 32°C) |
| Humidity | 5% to 95% non-condensing |
| Talk Battery | 40V DC |
| Loop Current to Entry Phone | 25mA (typical) |
| Ring Generation to Entry Phone | 40Hz square wave |
| Connections | (1) RJ-11 jack to connect with Panasonic card, and (4) screw terminals for power and entry phone connections |
Core Features :
• Interfaces in place of a Panasonic KX-T30865 or KX-T7775 doorphone
• All Panasonic doorphone / door station card programming options and features may still be used
• Increased audio performance over Panasonic’s doorphones
• Provides adjustable ringback tones to entry phone
• Provides CPC signal to entry phone
