Pan-Lug Compression Connectors Lugs LCCF6-14AF-L (Pack of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12 |
| Overall Length (In.) | 1.69 |
| Overall Length (mm) | 42.9 |
| Barrel Length (In.) | 1.22 |
| Barrel Length (mm) | 31 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.31 |
| Wire Strip Length (mm) | 33.3 |
| Part No | LCCF6-14AF-L |

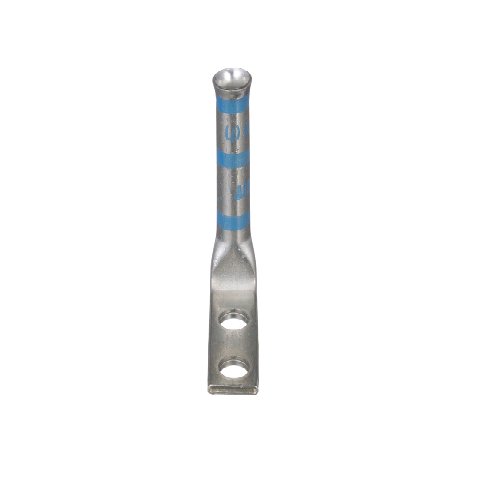

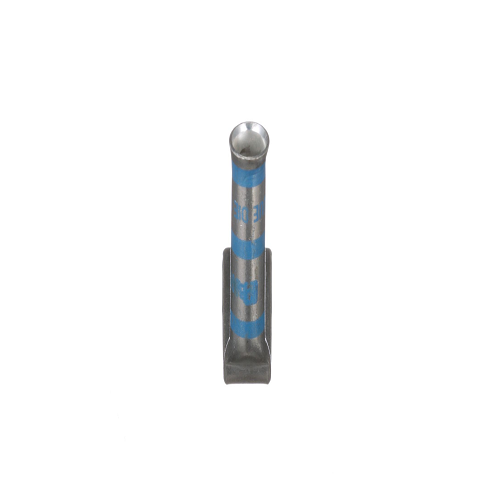

Pan-Lug Compression Connectors Lugs LCCF6-14AF-L
DESCRIPTION :
Two-hole, long flared barrel, #6 AWG wire, 1/4 stud hole, 5/8 hole spacing, NEMA hole sizes and spacing, 90° angle tongue.
FEATURES :
⦿ Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
Download PDF Spec Sheet
