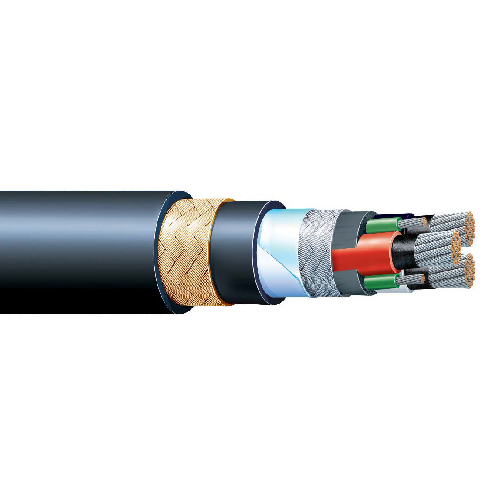

P-LSXTPO-BS3C2(OBS)VFD-2KV 2 AWG 3G x 6 IEEE 1580 Type LSXTPO Armored And Sheathed LSHF Flexible 2KV VFD Power Cable
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Allowable Ampacity for P-LSXTPO-BS3C2(OBS)VFD-2KV 2 AWG 3G x 6 IEEE 1580 Type LSXTPO Armored And Sheathed LSHF Flexible 2KV VFD Power Cable : 100 Amps
Description :
- 2KV Variable Frequency Drive (VFD) Power Cable
- 90°C Temperature Rating
- Halogen Free & Flame Retardant
- ETL Listed, ABS Approved
Also Known As :
LSXTPO OBS Cable, Power Cable, Flame Retardant Cable, Flexible Cable, Halogen Free Cable, Marine Cable, Armored and Sheated Cable, VFD Cable
Construction :
Conductor :
- Flexible Stranded Tinned Annealed Copper Wire
Insulation :
- Low Smoke, Halogen-Free XLPO (Type LSX)
- Color Code: IEEE 1580 Table 22
Ground Conductor :
- Flexible Stranded Tinned Copper Wire (X3)
Overall Braid Shield (OBS) :
- Tinned Copper Wire Braid With Al/PS Tape
Jacket :
- Thermoplastic Polyolefin (Type Tpo)
Armor (Optional) :
- Bronze Wire Braid Per IEEE 1580
Sheath (Optional) :
- Thermoplastic Polyolefin (Type TPO)
- Black Color
Standards :
- IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
- Type LSX Insulation: IEEE 1580
- Type TPO Sheath: IEEE 1580
- Flame Retardant: IEEE 1202
- Halogen Content: IEC 60754-1, ≤0.2%
- Cold Bend/Impact: CSA 22.2 No. 03 (-40°C/-35°C)
- Fire Resistant: IEC 60331-1/2/21 (Optional)
Specification :
- AWG Size : 2
- Ground Size AWG : 3G x 6
- Nominal OD : 1.606 Inches
- Weight : 2,145.15 Lbs / Mft
- Ampacity : 111°C
-
Part No : P-LSXTPO-BS3C2(OBS)VFD-2KV
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
