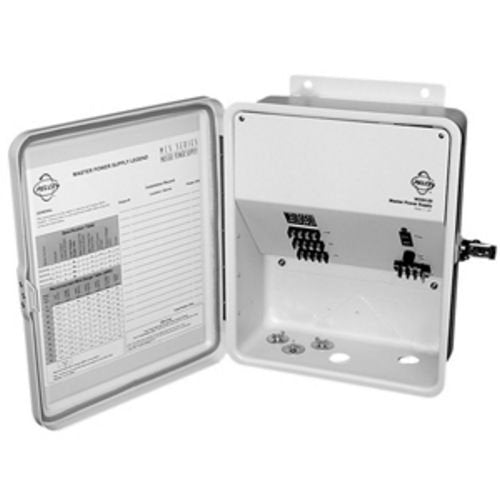

Outdoor Camera Power Supply 4 Amp 1 Output PELCO WCS1-4

Product Information

Specification

The WCS1-4 from Pelco is a single-output power supply for use with standard CCD cameras as well as Pelco's indoor or outdoor Spectra and Esprit pan-and-tilt systems. This model outputs 4, 26, or 28 VAC power, with the extra voltage above 24 VAC provided as a way to compensate for power loss from long cable runs. Input voltage is selectable between 100, 120, or 240 VAC.

The maximum current capacity for this model is 4 A (100 VA), with a fuse system providing protection from power overloads. While this method requires the replacement of fuses after each occurrence, by acting faster and being more precise, a fuse system provides a higher degree of overload protection as compared to a circuit-breaker system. This unit is suitable for outdoor installation and can be secured by an optional padlock.

Features:

• Single power supply for standard CCD cameras as well as Pelco's Spectra and Esprit pan and tilt dome systems
• Weather-proof design for outdoor installation (NEMA Type 4X and IP66)
• 120 VAC or 240 VAC selectable input
• 28 VAC Power output for long cable runs
• AC Power indicator with power On/Off switch
• Fuse circuit protection
• Padlockable
