Optical Fiber Tester 269-OPM01

Product Information

Specification

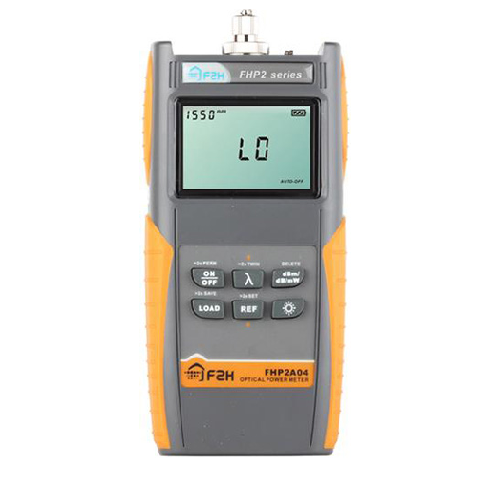

Optical Fiber Tester 269-OPM01

DESCRIPTION :

Optical Fiber Tester – Power Meter.

FEATURES :

• Wavelength range: 800–1700 nm
• Calibrated wavelengths:
• 850 nm;
• 1300 nm;
• 1310 nm;
• 1490 nm;
• 1550 nm;
• 1625 nm.
• Wavelength detection: fully automatic (input power ≥-40 dBm); digital protocol
• Modulation detection: 270 Hz, 1 kHz, 2 kHz (input power ≥-40 dBm)
• Reference power: fully automatic; digital protocol
• InGaAs detector
• Measuring range: -70 dBm–+10 dBm at 1550 nm
• Accuracy: ±0.2 db±1 nW (±5 %±1 nW)
• Resolution:
• 0.01 dB (-60 dBm–+10 dBm)
• 0.10 dB (-70 dBm–-60 dBm)
• ±5 % linearity
• Maximum distance: up to 150 km (~90 mi)
• LCD monochrome display
• Backlight mode

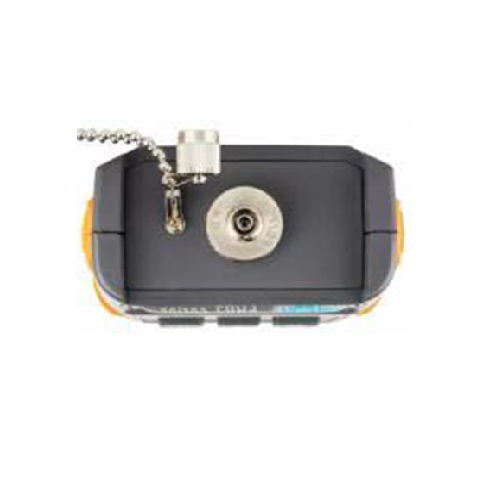

• Interchangeable interface
• FC/PC
• SC/PC
• Data Storage: 1,000 test records

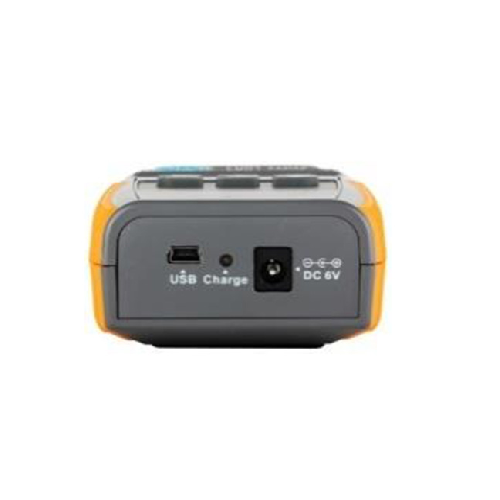

• USB port
• Rechargeable batteries: 2× Ni-MH AA (2500 mA-h)
• Non-rechargeable batteries: 2× AA R6 1.5 V
• Low-battery indicator
• Auto power off
• Kit includes:
1× 269-OPM01 unit
1× Soft-case carrying pouch
1× Software CD
1× USB cable
1× User guide
1× Calibration certificate
1× FC/PC adapter
1× SC/PC adapter
