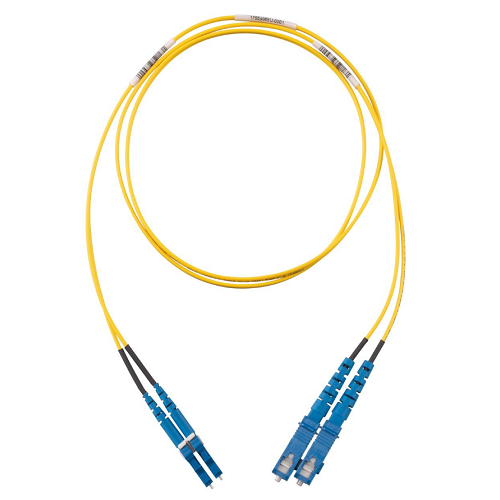

Opti-Core Fiber Optic Patch Cord Pigtail OS1/OS2 LC/SC Duplex

Product Information

Specification

About:

The "Opti-Core Fiber Optic Patch Cord Pigtail OS1/OS2 LC/SC Duplex" is a fiber optic patch cable designed for high-speed, long-distance data transmission. It supports OS1/OS2 single-mode fibers, suitable for both indoor and outdoor use. The cord features LC/SC duplex connectors, combining the compact design of LC connectors with the robustness of SC connectors.

Also Known As:

• "Single-Mode LC/SC Duplex Fiber Optic Pigtail."
•  "OS1/OS2 Compatible Fiber Optic Patch Cable with LC/SC Connectors."
• "High-Speed Data Transmission Fiber Optic Cable with LC and SC Duplex Connectors."

Common Applications:

• Data Centers: Connecting servers, switches, and storage devices over high-speed fiber optic networks.

• Telecommunications Networks: Used in backbone and access networks for telecom services, including long-distance and high-speed data transmission.

• Enterprise Networking: Ideal for structured cabling systems in large business settings, supporting LAN and WAN infrastructures.

• FTTx Deployments: Useful in Fiber to the Home (FTTH), Fiber to the Building (FTTB), and other fiber optic-based broadband access technologies.

• High-Speed Internet Services: Facilitates high-bandwidth internet connections in residential, commercial, and industrial environments.

Standards:

• ITU-T Recommendations: Standards like G.652 (OS1) and G.657 (OS2) specify the characteristics of single-mode optical fibers, focusing on attributes important for long-distance and high-speed data transmission.

• IEC Standards: Including IEC 61754, which defines the interface standards for fiber optic connectors, relevant for both LC and SC types used in this patch cord.

• TIA/EIA Standards: In the United States, standards such as TIA/EIA-568 detail the requirements for telecommunications cabling systems, including fiber optics.

• ISO/IEC Standards: ISO/IEC 11801 sets the international standards for generic cabling systems, encompassing the use of fiber optic cables in various infrastructures.

Construction:

• Single-Mode Fibers (OS1/OS2): Designed for high-speed, long-distance data transmission.

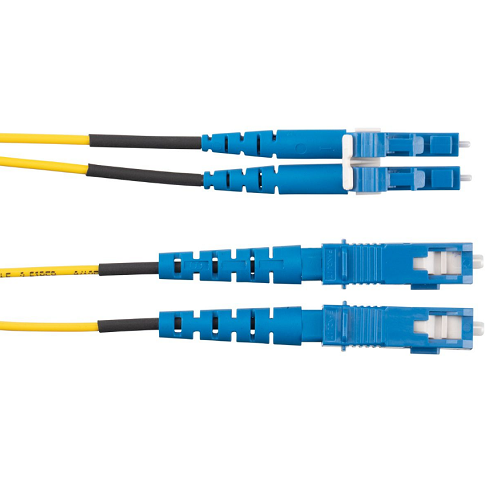

• LC/SC Duplex Connectors: Combines the compact LC and robust SC connectors for efficient connectivity.
• Pigtail Design: Features one end with connectors and the other end prepared for splicing.
• Protective Jacket: A durable outer layer that protects the internal fibers.
• Reinforcement: May include elements like aramid yarn for added strength and durability.

Features:

• Single-Mode Fibers (OS1/OS2): Suitable for high-speed, long-distance data transmission.
• LC/SC Duplex Connectors: Combines the compactness of LC with the durability of SC connectors for secure, reliable connections.
• Pigtail Design: Facilitates easy splicing to other fiber networks or equipment.
• Opti-Core Technology: Indicates high-quality fiber construction for optimal performance.
• Versatility: Ideal for use in data centers, telecom networks, and high-bandwidth applications.
