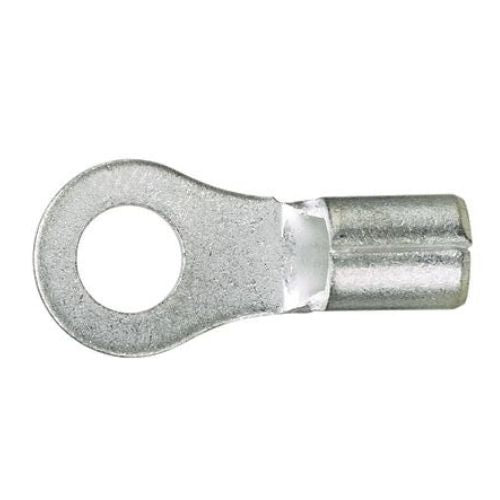

Non Insulated Ring Terminal Standard Brazed Seam Barrel P14-14R-C (Pack of 100)

Product Information

Specification

About:

• The Non-Insulated Ring Terminal with a Standard Brazed Seam Barrel is designed for reliable electrical connections in various industrial and commercial applications. Its brazed seam barrel ensures secure crimping, providing a strong mechanical bond and excellent electrical conductivity.
• This type of terminal is ideal for use where no insulation is required and where the environment does not present the risk of electrical hazards.
• Its ring design ensures a stable connection to a screw or stud-type terminal block, reducing the risk of disconnection due to vibrations or movement. These terminals are typically used in control panels, automotive systems, and heavy machinery wiring.

Also Known As:

Non-Insulated Ring Lug, Non-Insulated Crimp Ring Terminal, Non-Insulated Electrical Ring Connector, Non-Insulated Loop Terminal, Non-Insulated Stud Terminal, Open Barrel Ring Terminal.

Specification:

Features

• Ring tongue design ensures a secure connection, particularly in high-vibration applications.
• Internal barrel serrations provide excellent wire contact and maximize tensile strength for enhanced durability.
• Brazed seam construction prevents the terminal barrel from splitting during the crimping process, ensuring long-term reliability.
• Internally beveled barrel allows for quick and easy wire insertion, reducing installation time.
• UL and CSA rated for up to 2000V per UL 486, ensuring compliance with safety and performance standards.
• Maximum recommended operating temperature of 302°F (150°C), suitable for a wide range of industrial environments.
