MVC S40-C4-000 Microsoft Teams Video Conferencing Kit YEA-MVCS40-C4-000

Product Information

Specification

About:

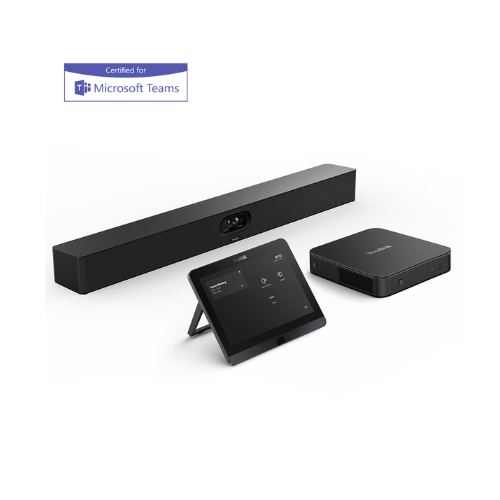

The MVC S40 is designed for small-to-medium conference rooms, featuring Yealink's SmartVision 40, an all-in-one audio and video system with dual 48MP lenses, 120° pickup range, and advanced AI functions like IntelliFocus and Video Fence for an immersive Teams experience. It includes the MCore Pro MINI-PC with three HDMI ports and EDID for flexible setup, and the MTouch E2 touch panel with a built-in Human Motion Sensor for instant wake-up and meeting start.

Also Known as:

Video Conference Room Kit, Conference Kit for Meeting, Meeting Room Kit, Video Call Kit.

Specifications:

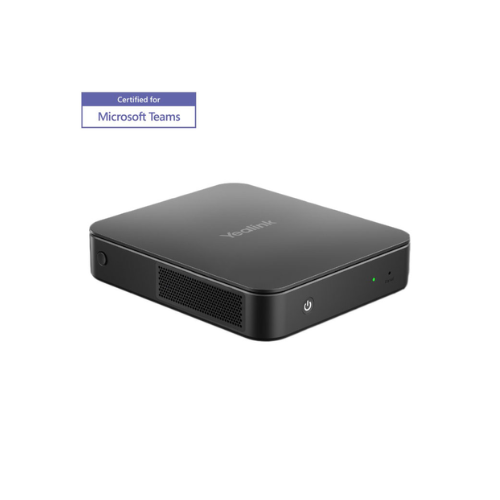

MCore Pro, Gen-3 Mini-PC:

‣ 11th Gen Intel Core i5
‣ Memory: 8 GB (2 x 4GB)
‣ Storage: 128 GB SSD
‣ 3x HDMI video output with CEC supported
‣ TPM2.0
‣ Kernel DMA
‣ EDID
‣ Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
‣ Bluetooth: BT 5.2
‣ 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
‣ 4 x USB 3.0 Type-A
‣ 1 x 10/100/1000M Ethernet port
‣ 1 x Power port
‣ 1 x Security lock slot, Integrated cable management

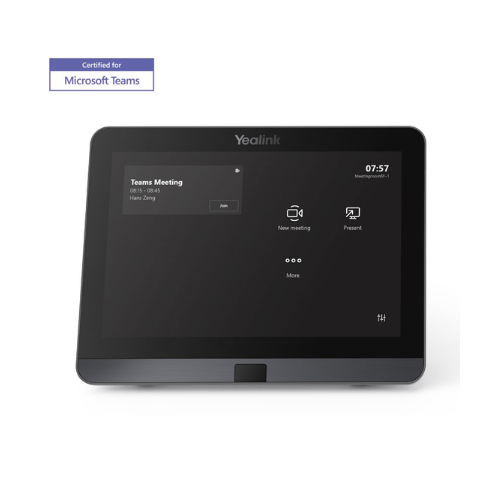

MTouch E2 Touch Panel:

‣ 8-inch IPS screen
‣ 1280 x 800 resolution
‣ 10-point capacitive touch screen
‣ 3.5 mm headset jack
‣ Angle adjustable bracket (28° – 50°)
‣ 1080P/30FPS FHD for sharing
‣ Support wired and wireless content sharing
‣ Built-in Wi-Fi AP for Yealink wireless presentation device
‣ HDMI/USB-C HD video input

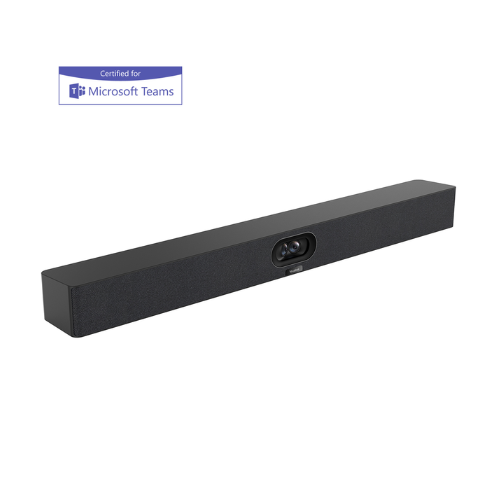

SmartVision 40:

‣ 2x 48 MP Camera
‣ DFOV: 120°
‣ HFOV: 111°
‣ VFOV: 54°
‣ 2x 10W Stereo speakers
‣ Speaker: 78.78dBSPL@0.5m
‣ 1x USB3.0 Type-B port
‣ 1x USB2.0 Type-A port
‣ 1x USB-C port
‣ 1x Yealink VCH port（RJ-45）
‣ 1x 3.5mm Line-in & Line-out port
‣ 1x Power port
‣ 1x Security lock slot
‣ 1x Reset slot
‣ 1x HDMI-out
‣ Built-in Wi-Fi

Features:

• Multi-Stream IntelliFrame
• Intellifocus
• Wireless Content Sharing
• Device Management
• 2*48MP Cameras
• 6m Pick-up Range
• 2*Speaker with Stereo Sound
• One Cable Technology
• Teams Certified
