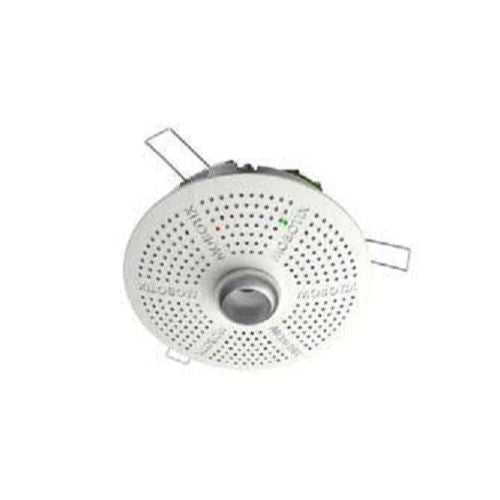

Mobotix Mx-c26B-6N c26 Camera Module Body with 6 MP Moonlight Sensor

Product Information

Specification

Description:

The c26 camera module features a 6 Megapixel Moonlight Sensor for black and white night vision and a lens mount, and it is ONVIF-compliant with the Mx6 system platform (2nd generation) supporting H.264, MxPEG+, and M-JPEG. The lens must be ordered separately, with options ranging from B036 to B237, focal lengths between 3.6 mm and 23.7 mm, and an aperture of f/1.8. The camera has a maximum image size of 6MP (3072 x 2048), an IP20 rating, and operates within a temperature range of 0 to 40°C (32 to 104°F). It includes a 4-GB microSD card, temperature sensor, illumination sensor, movement sensor, MxActivitySensor, MxAnalytics, and a shock detector. Additionally, it comes with a 0.5 m (1.6 ft) Ethernet patch cable. The interfaces include Ethernet 10/100 (RJ45), MxBus (via Mx-A-IO-IC), USB, and a slot for the MxIOBoard-IC (Mx-A-IO-IC). The camera module is available in white.

Technical Specifications:

• Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility

• MxAnalytics Video Analysis tools as standard

• For ceiling or corner installation, optional on-wall set

• As easy to install as a spotlight

• Variants with audio package (microphone and speaker)

• Integrated vibration and temperature sensor

• Recording on an internal MicroSD card (4 GB as standard)
