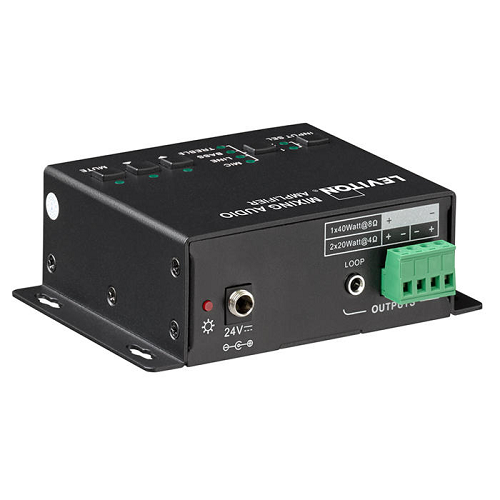

Leviton Mixing Audio Amplifier Includes Power Adapter 24VDC 41920-A01

Product Information

Specification

About:

• The Mixing Audio Amplifier is ideal for classrooms, small conference rooms, and light commercial or retail installations.
• The compact Class D digital amplifier includes two stereo audio inputs and one balanced mic input, which support EQ control and mic mixing.
• With 2 x 20 Watt at 4 Ohm as the default output, it can be switched to 1 x 40 Watt at 8 Ohm by bridge connection.

Also known as:

Amplifier, Power Adapter, Mixing Audio Amplifier, Amplifier Includes Power Adapter, Adapter, Mixing Audio Amplifier Power Adapter.

Specification:

• Type: Mixing Audio Amplifier
• Materials: Metal enclosure
• UPC Code: 078477711217

Feauters:

• Three switchable inputs: two stereo audio and one mic
• Mic mixer function with independent control
• Mic input supports 48 V phantom power
• Line-audio output jack with controllable volume
• Volume, bass, treble, and mute controls
• Auto output mute on no input
• IR and RS232 control capability
• 20Hz – 20KHz frequency response
• Three output modes: 2 X 20W stereo, 1 X 40W bridge mono, and 2 X 20W dual mono
• LED indicators for power and control function feedback
• Locking power supply input connector
