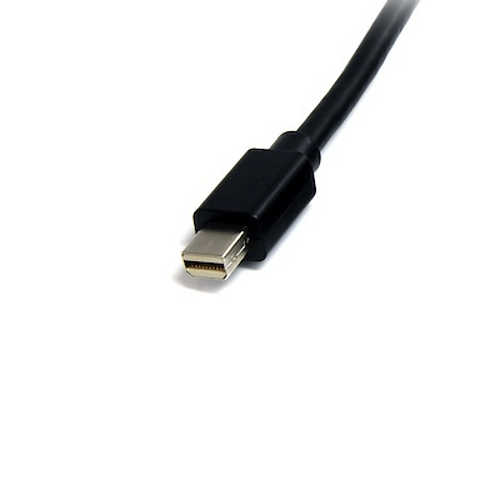

Mini DisplayPort to Mini DisplayPort 4K x 2K Ultra HD Video DisplayPort 1.2 Cable W/ Thunderbolt 2 Ports

Product Information

Specification

Mini DisplayPort to Mini DisplayPort 4K x 2K Ultra HD Video DisplayPort 1.2 Cable W/ Thunderbolt 2 Ports

Applications:

• Connect your Mini DisplayPort laptop or desktop to a Mini DisplayPort compatible display

Description:

Mini DisplayPort 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac family of products) to a Mini DisplayPort-equipped monitor. The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support. For guaranteed reliability, and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability. Newer laptop and desktop computers (e.g., Apple) come equipped with Thunderbolt ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.

Features:

• PANEL MOUNT DISPLAYPORT CABLE: Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

• RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector substructure provides EMI shielding; Mini DisplayPort cable works with Thunderbolt 2 ports

• QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double-sided copper foil provides higher quality video and audio; mDP cable is backward compatible with DP1.1

Hardware:

• Number of Conductors: 19
• Connector Plating: Nickel
• Cable Jacket Material: PVC - Polyvinyl Chloride
• Fire Rating: CMG Rated

Connector(s):

• Connector A: 1 - Mini-DisplayPort (20 pin)
• Connector B: 1 - Mini-DisplayPort (20 pin)

Environmental:

• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 0~75% RH

Performance:

• Maximum Digital Resolutions: 4k x 2k (3840 x 2160) @ 60Hz
