MIC Unitized Tight-Buffered Interlocking Armored Cable Plenum 48 F Single-mode (OS2) CORNING-C 048E88-61131-A3
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
| Product Number: | 048E88-61131-A3 |
| EAN Code : | 4056418198064 |
| Environment : | Indoor |
| Cable Type : | Tight-Buffered |
| Product Type : | Interlocking Armor |
| Fiber Category : | Single-mode (OS2) |
| Flame Rating : | Plenum (OFCP) |
| Application : | General Purpose Horizontal, Vertical Riser, Plenum |
| RoHS : | Free of hazardous substances according to RoHS 2011/65/EU |
| Temperature Range : | 0 °C to 60 °C (32 F to 140 F ) |
| Fiber Count : | 48 |
| Outer Jacket Color : | Yellow |
| Outer Jacket Material : | Flame-retardant |
| Fiber Code : | E |
| Fiber Name : | SMF-28e+® fiber |
| Wavelengths : | 1310 nm / 1383 nm / 1550 nm |
| Weight : | 496.9 kg/km (333.9 lb/1000 ft) |
MIC Unitized Tight-Buffered Interlocking Armored Cable Plenum 48 F Single-mode (OS2) CORNING-C 048E88-61131-A3
Description:

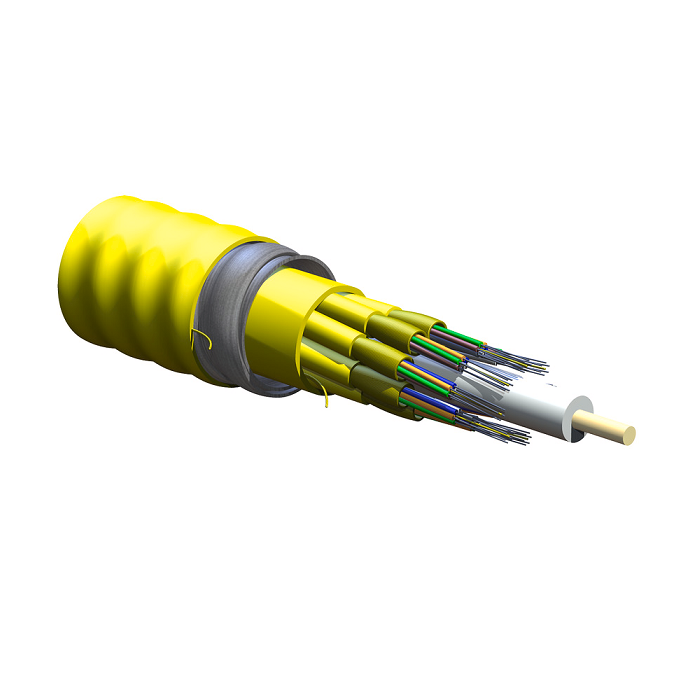

• Corning MIC interlocking armored plenum cables are designed for use in plenum, riser, and general-purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use individually jacketed 900 µm buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and up to seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.
Feature/Benefits:
• Flexible, interlocking armor design
Seven times crush protection compared to non-armored cables
• TBII buffered fibers
Easy, consistent stripping
• Flame-retardant jacket
Rugged and durable
• 6-fiber jacketed subunits
Quick and easy identification
