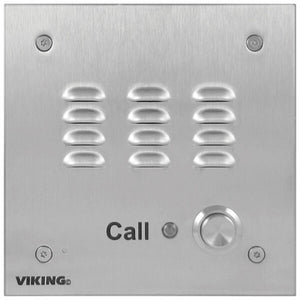

Viking MSB-30 – Mic/Speaker/Button Panel for IP Cameras
About :
The MSB-30 enhances IP network cameras with two-way audio, converting them into VoIP video phones by improving sound quality. It features a microphone, speaker, and "CALL" button in a stainless steel flush-mount panel. The unit connects to the camera's audio input/output for clear two-way communication, with a built-in 2-watt amplifier to boost sound. Volume controls adjust speaker and microphone levels, and an auxiliary speaker can be added for more coverage. The "CALL" button can trigger the camera or ring a doorbell. A blue LED indicates power and button location. For outdoor use, the MSB-30-EWP model is available.
Also Known As :
Button Panel, Telephone Accessories, Speaker Button Panel, Mic Button Panel, Push Button
Specification :
|
Door Phone Type |
Intercom, Push Button, Surface Mount, Vandal Resistant |
| Power | 120V AC/13.8V AC UL listed adapter provided |
| Operating Temperature | -26°C to 54°C (-15°F to 130°F) |
| Humidity | 5% to 95% non-condensing |
| Overall Dimensions | 127mm x 127mm x 57mm (5” x 5” x 2.25”) |
| Connections | Gel-filled butt connectors |
Core Features :
• Volume adjustments for microphone and speaker
• Two Watt amplifier to drive speaker
• Power supply included
• Blue LED indicator
• Extended temperature range of -15°F to 130°F
• Optional VE-5×5 surface mount back box (DOD 424)
• Optional MSB-30-EWP is designed to meet IP66 Ingress Protection Rating (see DOD 859 for more information)
Download PDF Spec Sheet
