Metric Push-Pull Force Gauge (0-1000 g) GPP-1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Metric Push-Pull Force Gauge |
| UPC | 811490015531 |
| Gauge Face | Cylindrical |
| Tip Widths | 0.650" (1.65 mm) |
| Tip Thicknesses | 0.0472" (1.20 mm) |
| Accuracy | +- 1 graduation |
| Graduation | 50 g |
| Range | 0-1000 g |
| Max Capacity | 1000 g (35.27oz) |
| Material | Brass with Satin Chrome |
| Diameter | 5/8" (15.875 mm) |
| Dimensions | 9.25 in x 0.69 in x 0.69 in |
| Part Number | GPP-1 |

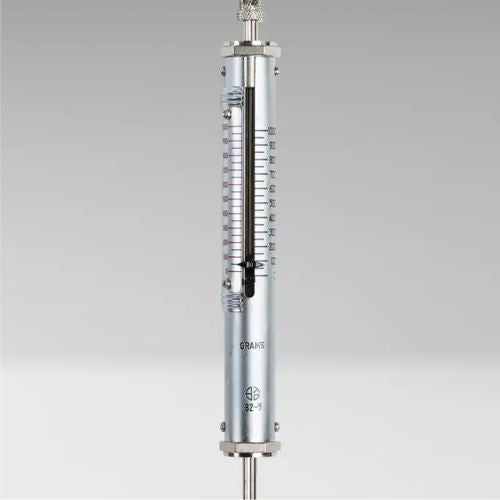

Metric Push-Pull Force Gauge
Description:
The GPP-1 Push-Pull Force Gauge is a precision, compact, tubular-type mechanical instrument designed to measure push and pull forces in confined or hard-to-reach areas.
Graduated in grams, the GPP-1 measures forces up to 1000 g (35.27 oz). Each precision spring is individually calibrated and verified with dead weights to ensure exceptional accuracy and reliability. Full-scale accuracy and factory calibration are maintained within ±1 graduation.
In addition to general force measurement applications, this gauge can also be used to test belt tension in ATMs and other precision mechanical systems.
Features:
• Compact tubular design for confined areas
• Measures up to 1000 g (35.27oz)
• Individually calibrated precision springs
• ±1 graduation full-scale accuracy
• Factory calibrated for dependable performance
• Suitable for push and pull force measurement
• Ideal for testing belt tension in ATMs
