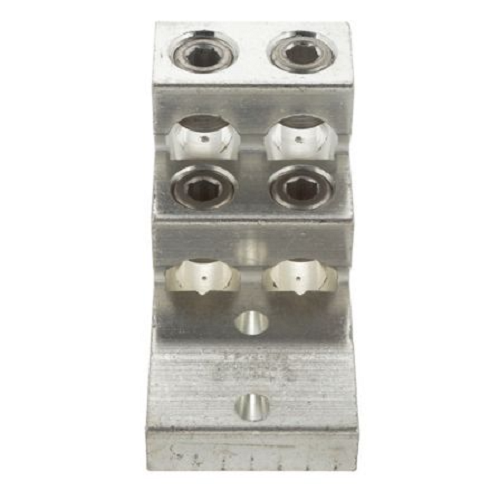

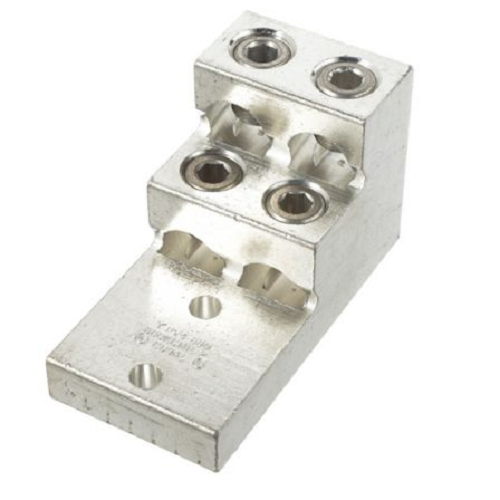

Mechanical Lug LAM4SB600-38-1Y

Product Information

Specification

About:

• A mechanical lug is a type of electrical connector used to join two or more electrical conductors and create a secure connection to an electrical device. Mechanical lugs are commonly used in various electrical applications, including power distribution, grounding, and bonding systems. They are known for their ease of installation and reliability in ensuring a stable electrical connection.
•  Typically made from high-conductivity metals such as aluminum or copper. Aluminum lugs are often tin-plated to resist corrosion. Features a solid body with a screw or bolt mechanism to clamp down on the conductor. The lug can be a single-barrel (for one conductor) or multi-barrel (for multiple conductors). Available in various sizes to accommodate different conductor gauges and electrical load requirements.
• Mechanical lugs are essential components in ensuring the integrity and reliability of electrical connections across various systems. Their versatility, ease of use, and robustness make them a preferred choice for electricians and engineers in multiple industries.

Also Known As:

Mechanical Connectors, Electrical Lugs, Cable Lugs, Terminal Lugs, Clamp Connectors, Wire Lugs, Terminal Connectors, Mechanical Terminals, Bolt-On Lugs, Mechanical Cable Connectors.

Specification:

Features:

• Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
• Wide wire range taking capability minimizes inventory requirements.
• Inspection window to visually assure full conductor insertion.
• Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector.
• Four barrels provide termination of four conductors.
• Tin-plated to inhibit corrosion.
• Vertical configuration saves space.
• 2 stud of 3/8 in.
• Use of panduit oxide inhibiting joint compound (CMP-100) is recommended for pad to pad and conductor connections.
