MCoreKit-C5-MS BaseKit for Microsoft Teams Room System YEA-MCOREKIT-C5-MS

Product Information

Specification

About:

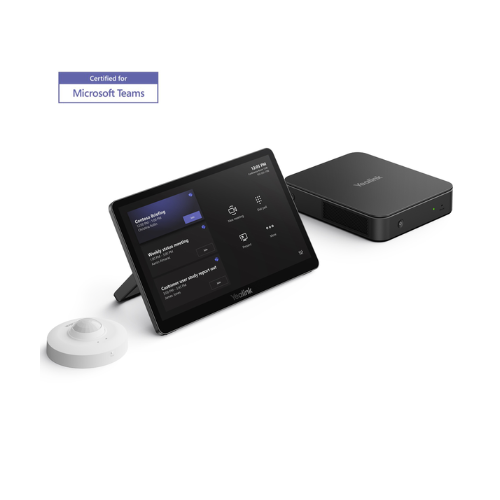

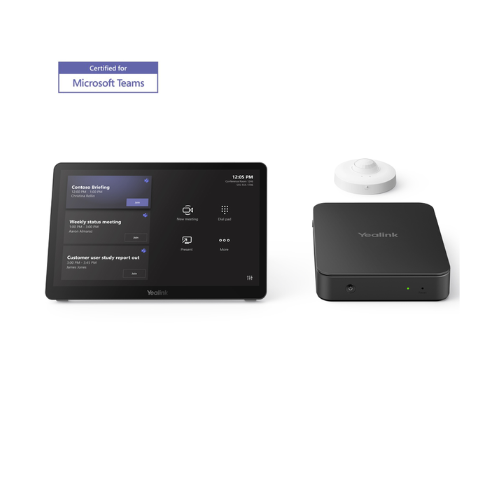

The MCoreKit-C5-MS is a Native Microsoft Teams Rooms Base Kit, including the MCore Pro Mini-PC, MTouch Plus touch panel, and RoomSensor. The MCore Pro, powered by an 11th Gen Intel Core i5 processor, ensures excellent performance and supports triple-screen displays via its HDMI outputs. It features TPM 2.0 for secure data protection and CEC-enabled automatic screen wakeup for convenience. The MTouch Plus, Yealink's third-generation touch panel, boasts an 11.6-inch anti-fingerprint and anti-glare IPS screen, offering intuitive and comfortable meeting control. Together, these components provide a seamless, secure, and efficient conferencing experience.

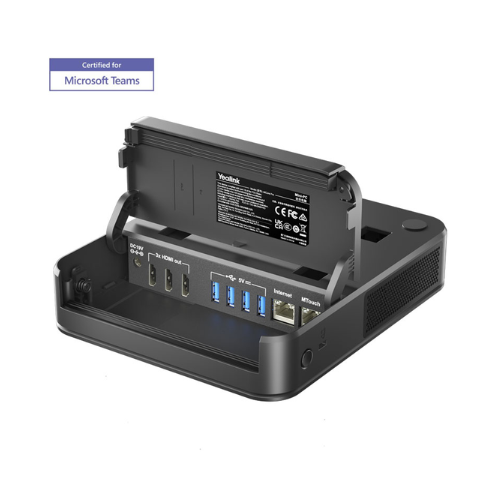

MCORE PRO GEN-3:

• 11th Gen Intel Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management

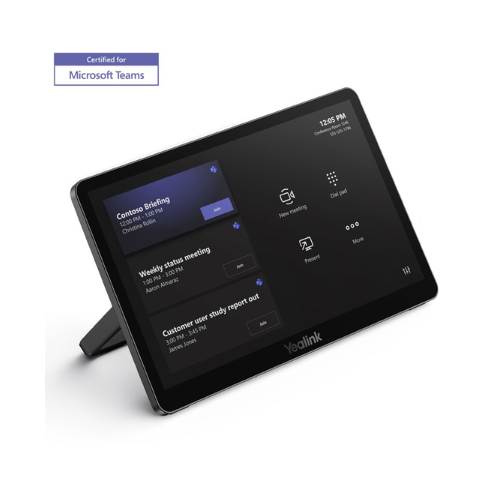

MTOUCH PLUS:

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Adjustable stand (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support wireless BYOD*
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

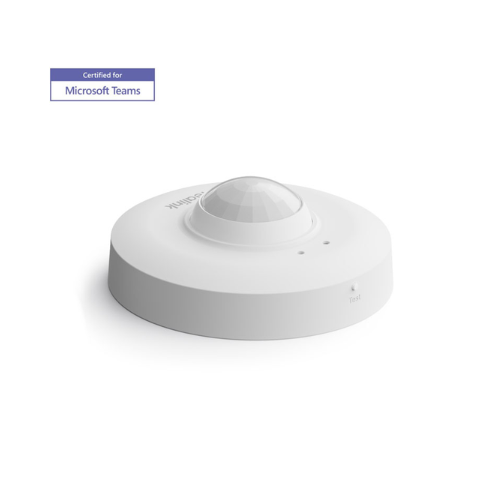

ROOMSENSOR:

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered.
