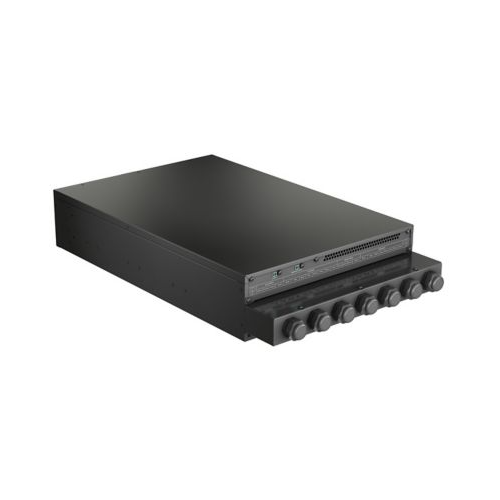

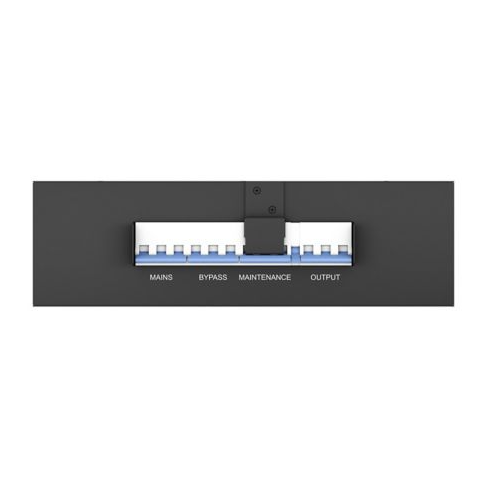

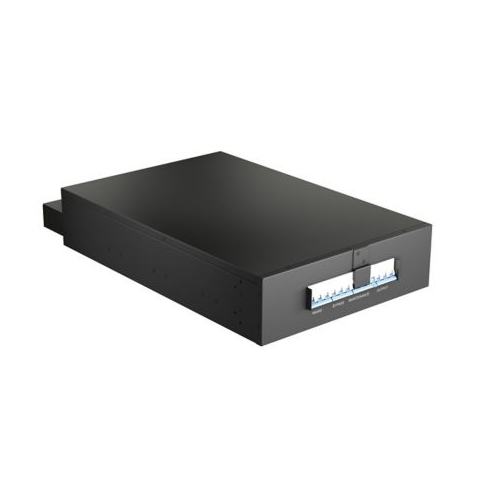

Maintenance Bypass Switch UMB20K

Product Information

Specification

About:

• Maintenance Bypass Switch for 6kVA & 10kVA single phase UPS and 10kVA, 15kVA, and 20kVA 3phase UPS.
• This switch ensures proper bypass operation during a routine service outage
• Allows for seamless transfer of power supply from utility power directly to connected equipment or from a backup power source (like a generator) bypassing the UPS.
• Enables technicians to perform maintenance, repairs, or upgrades on the UPS system without disrupting power to critical loads.

Also Known As:

Bypass Isolation Switch, UPS Bypass Switch, Static Bypass Switch, Utility Bypass Switch, Backup Bypass Switch, Power Bypass Switch, Standby Bypass Switch.

Specification:

• Product Type: Maintenance Bypass Switch
• Sub Brand: SmartZone
• Form Factor: 3U
• Nominal Input Voltage (V): 380/400/415
• Input Output Phase: 3:3
• Nominal Output Voltage (V): 380/400/415
• UPC: 61305682546

Features:

• Installed externally to the UPS system, typically in a separate enclosure or cabinet.
• Can be customized to integrate with specific UPS models and applications.
