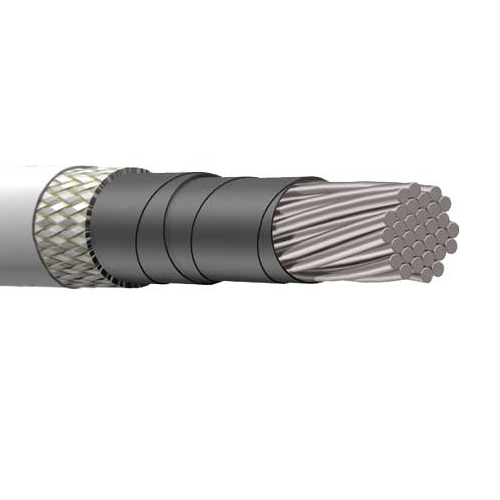

M25038/3 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable

Name: M25038/3 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable
Brand: Nassau National Cable
SKU: m25038-3-stranded-nickel-coated-copper-ptfe-260-c-600v-aerospace-cable
Availability: InStock
Rating: 4.93 (7926 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

M25038/3 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name 22 AWG 19/34 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-22	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 20 AWG 19/32 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-20	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 18 AWG 19/30 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-18	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 16 AWG 19/29 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-16	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 14 AWG 19/27 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-14	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 12 AWG 19/25 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-12	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

M25038/3 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable

Applications:

• Critical circuit aerospace applications where wires must operate in extremely harsh environments, under vibration, and maintain electrical integrity for a short time under direct flame exposure during emergency conditions.

Also Known as :

M25038/3 Cable, Military Wire, High-Temperature Wire, Polyester Braid Cable, Silver Coated Cable, Mil-Spec cable, Aircraft Cable

Description :

• 22 - 20 AWG: 27% nickel-coated high-strength copper alloy
• 18 - 12 AWG: 27% nickel-coated copper
• Inner insulation: Inorganic dielectric
• Outer insulation: PTFE-coated fiberglass barrier
• Operating temperature: -55°C to +260°C
• Voltage rating: 600 volts
