M23 6 Pin Sensor Actuator Encoder Cable PCM-S-0489

Product Information

Specification

About :

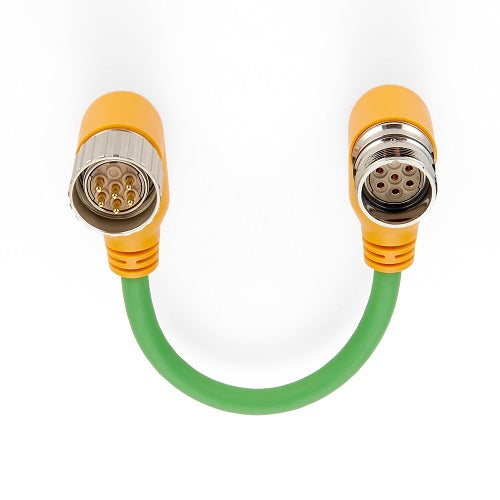

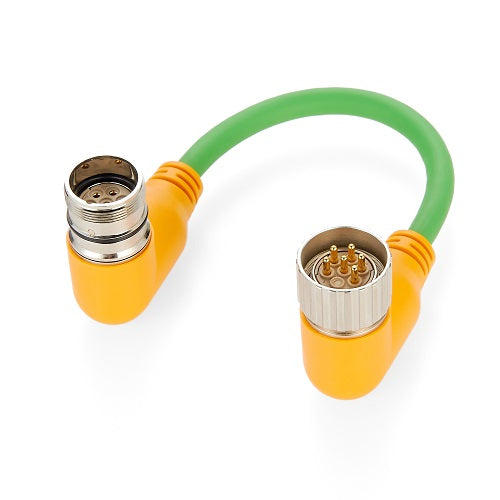

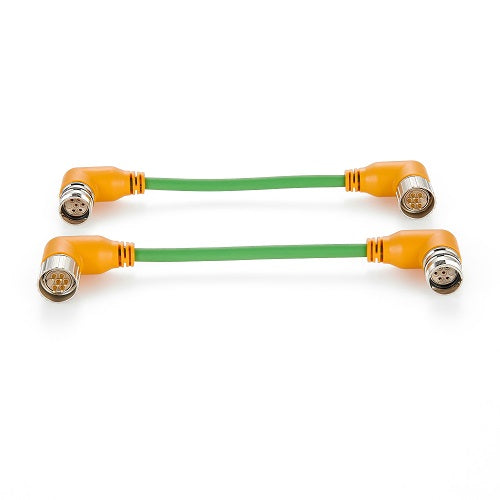

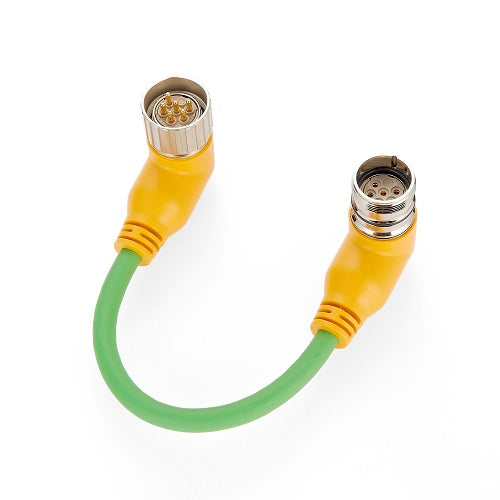

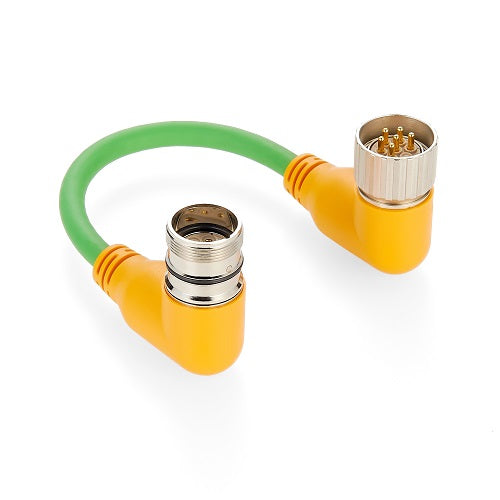

M23 6 Pin Male Female Profibus Interbus Power Cable

M23 6 Pin connector to power a Profibus module, it is critical to ensure that the power pins (+24V and GND) and the data communication pins (TX, RX, etc.) are connected correctly to ensure that the module can operate properly and communicate with the Profibus network .

When using an M23 6 Pin connector to power a Profibus module, you also need to consider the different pin functions in the connector and how it mates to the Profibus module.

Also Known As :

Data Transmission Cable, Fieldbus Cable, Industrial Ethernet Cable, Motion Control Cable, Ethernet Cable, Encoder Cable

Specification :

1. Power pin:

The pins in the M23 6 Pin connector usually include pins for the power supply. For Profibus modules, a +24V DC power supply is usually required. Therefore, there will be a pair of pins in the M23 connector for +24V and ground (GND) to provide power to the Profibus module.

2. Data communication pins:

Profibus uses the RS485 standard for data communication. Therefore, the remaining pins in the M23 6 Pin connector will be used to connect the data communication signals of the Profibus module. These pins include data transmission (TX), data reception (RX), data ground, etc. so that the module can exchange data with the Profibus bus.

3. Mechanical adaptability:

M23 connectors are designed for use in industrial environments and have high durability and protection levels. This is important for Profibus modules installed in factory automation environments, as they may need to operate in harsh conditions.

4. Connection standards:

Make sure that the pinout of the M23 connector matches the connection requirements of the Profibus module used. Although M23 is a standard connector, the exact pinout may vary depending on the manufacturer and device.
