M23 12 Pin Industrial Circular Encoder Cable PCM-S-0485

Product Information

Specification

About :

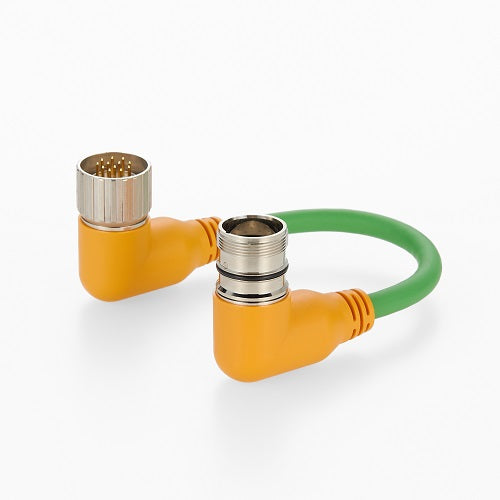

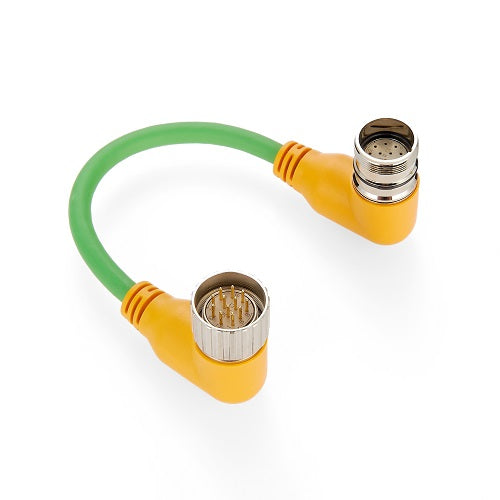

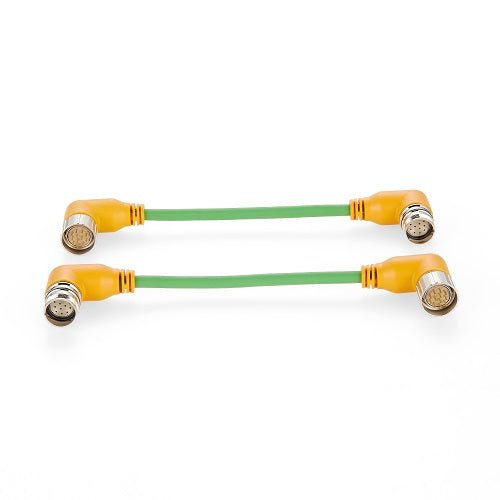

Industrial circular connector M23 12 Pin Male to Female angled 90°

M23 12 Pin male to female extension cable with 90° elbow design suitable for connection needs of various sensors, actuators and servo motor encoders in industrial automation systems

Also Known As :

Data Transmission Cable, Fieldbus Cable, Industrial Ethernet Cable, Motion Control Cable, Ethernet Cable, Encoder Cable

Specification :

M23 12 Pin Male to Female extension cable with 90° elbow design has a variety of applications in sensors, actuators and servo motor encoders, mainly reflected in the following aspects:

1. Sensor connection:

Position sensor: Used to connect position sensors in factory automation systems, such as sensors that measure the position of a robot arm or workpiece. The 90° elbow design enables efficient placement of sensors in limited spaces while maintaining connection stability and reliability.

Environmental sensor: suitable for connecting environmental monitoring sensors, such as temperature, humidity, gas concentration and other sensors, to ensure safety and production quality in industrial environments.

2. Actuator connection:

Electric actuator: Use the M23 12 Pin extension cable to connect electric actuators, such as position and status feedback sensors that control valves, pistons and other actuators.

Motors and drives: Connect industrial motors and drives for reliable transmission of power and data, supporting motor operation control and feedback.

3. Servo motor encoder:

Encoder connection: In servo systems, it is used to connect servo motor encoders to achieve position feedback and precise position control. The 90° elbow design facilitates efficient installation and wiring in compact mechanical layouts, reducing space occupation.
